Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery system - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

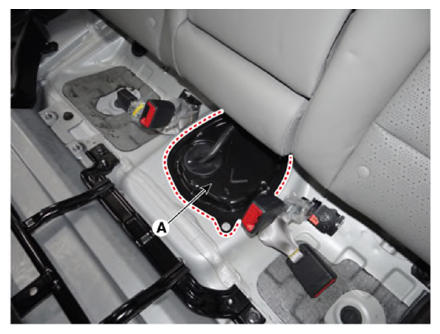

  4. Remove the fuel pump service cover (A).
    G12696320Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

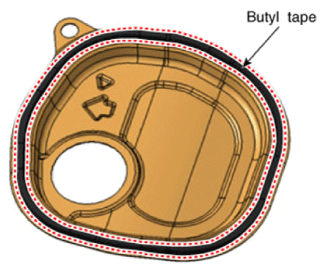

    • When reinstalling a protective cover for a fuel pump, remove the existing butyl tape and apply a new one.
    • Before assembling the protective cover, ensure that the temperature of the butyl is about 30°C using a hair dryer or a heat gun.
    G12696321Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

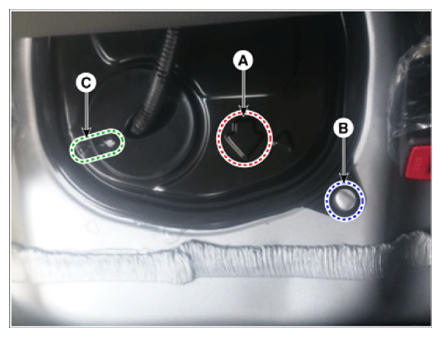

    • When installing the protective cover for the fuel pump, pay attention to the installation direction of the grommet and the protective cover.
    • The arrow (A) should be in the forward direction of the car.
    • Align the bulging part of the vehicle body (B) with the hole of the protective cover.
    • Align the bulging part of the grommet (C) with the bulging part of the protective cover.
    G12696322Courtesy of KIA MOTORS AMERICA, INC.

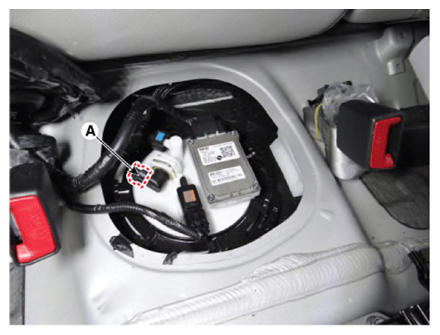

  5. Disconnect the fuel pressure sensor connector (A).
    G12696323Courtesy of KIA MOTORS AMERICA, INC.

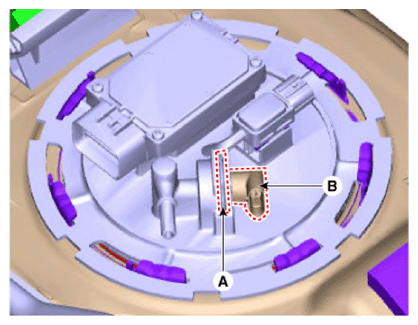

  6. Remove the fuel pressure sensor fixing pin (A).
  7. Remove the fuel pressure sensor (B) from the fuel pump.
    G12696324Courtesy of KIA MOTORS AMERICA, INC.
