Repair Procedures: Installation

NOTE:

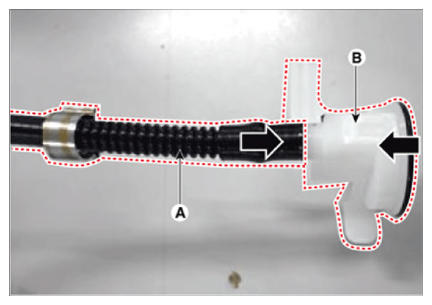

  1. Put the tube (A) into the assist pump (B).
    G12696268Courtesy of KIA MOTORS AMERICA, INC.

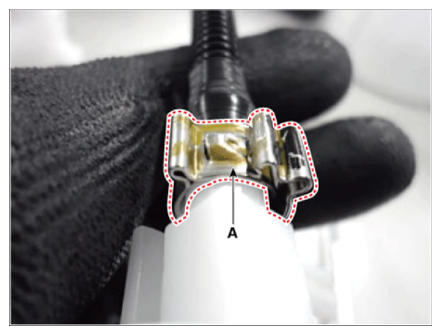

  2. Put the clip (A) on the joint.
    G12696269Courtesy of KIA MOTORS AMERICA, INC.

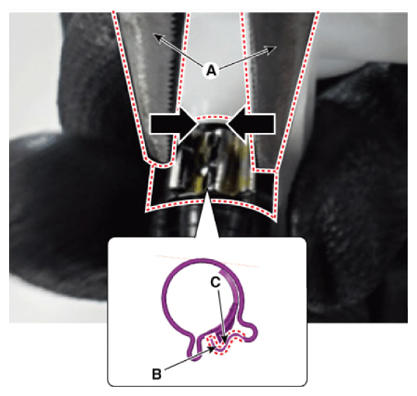

  3. Hook the clip (B, C) by using plier (A).
    G12696270Courtesy of KIA MOTORS AMERICA, INC.

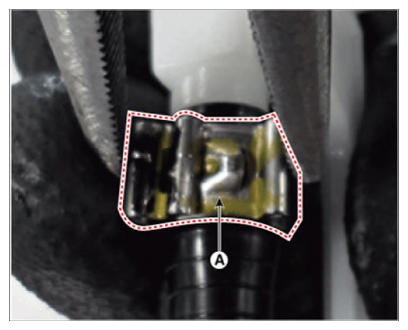

  4. Fix the clip (A).
    G12696271Courtesy of KIA MOTORS AMERICA, INC.
