Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the crankshaft position sensor connector (A).

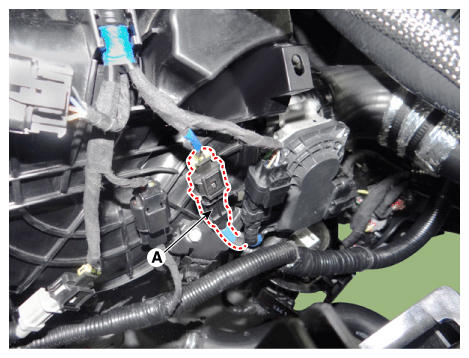

    Fig 1: Locating Crankshaft Position Sensor Connector
    G12140219Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the engine room under cover,

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  4. Remove the sensor (A) by loosening the mounting bolt.

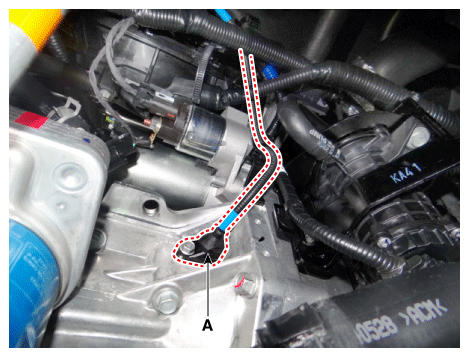

    Fig 2: Locating Crankshaft Position Sensor
    G12140220Courtesy of KIA MOTORS AMERICA, INC.
