Repair Procedures: Replacement

1. Remove the front seat belt upper anchor.

   (Refer to Front Seat Belt - " FRONT SEAT BELT RETRACTOR  ")

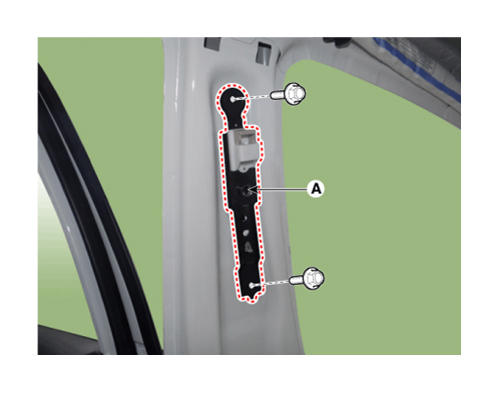

2. After loosening the mounting bolts, then remove the height adjust (A).

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install in the reverse order of removal.

Information

Replace any damaged clips.
