Monitor KDS/GDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

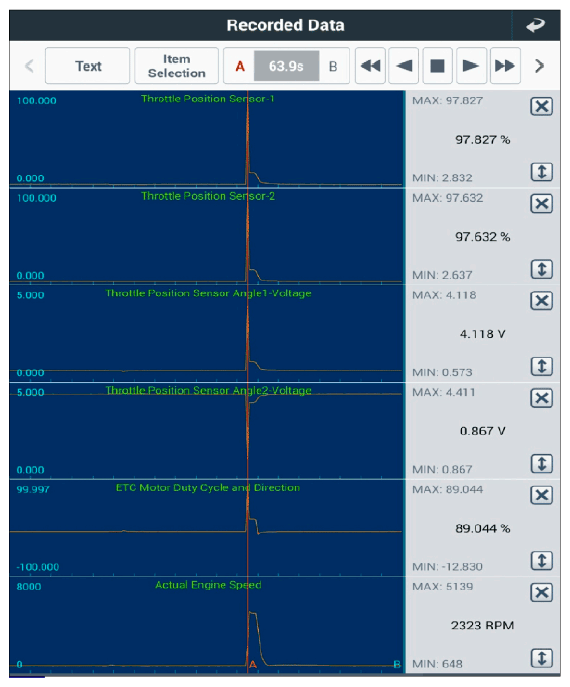

Figure below |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Go to "Wiring Inspection " procedure.
