Circuit Diagrams

Fig 1: Button Engine Start System Communication Diagram (1 Of 2)
G12173661Courtesy of KIA MOTORS AMERICA, INC.

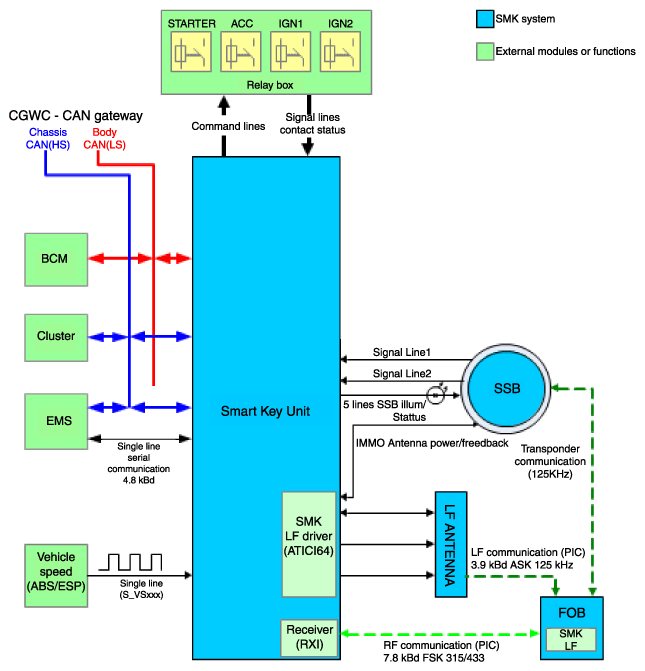

Fig 2: Button Engine Start System Communication Diagram (2 Of 2)
G12173662Courtesy of KIA MOTORS AMERICA, INC.
