Repair Procedures: Removal
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad passenger side panel.
(Refer to Body - " CRASH PAD CENTER PANEL ")

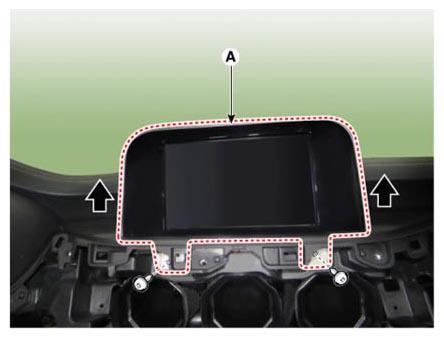

- Remove the audio front monitor (A) after loosening the mounting screws.

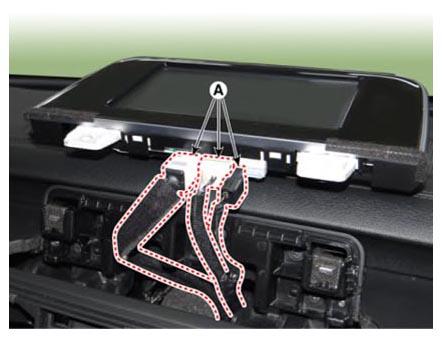

- Disconnect the audio front monitor connectors (A).
