Circuit Inspection

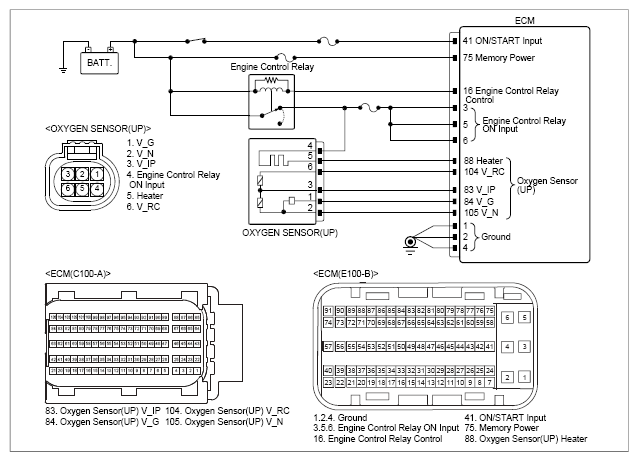

G12784363

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect HO2S (B1/S1) and ECM connector.	HO2S (B1/S1) connector	1 (Virtual ground)	ECM Connector	84 (Virtual ground)	Below 1Ω
		2 (Nernst Voltage)		105 (Nernst Voltage)	Below 1Ω
		3 (Pumping Current)		83 (Pumping Current)	Below 1Ω
		6 (Trim Resistor)		104 (Trim Resistor)	Below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
