[Bank 1/Intake]
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the variable force solenoid (VFS).
(Refer to Engine Control System - " VARIABLE FORCE SOLENOID (VFS) ")
- Remove the cylinder head cover.
(Refer to Engine Mechanical System - " CYLINDER HEAD COVER ")
- Remove the timing chain.
(Refer to Engine Mechanical System - " TIMING CHAIN ")

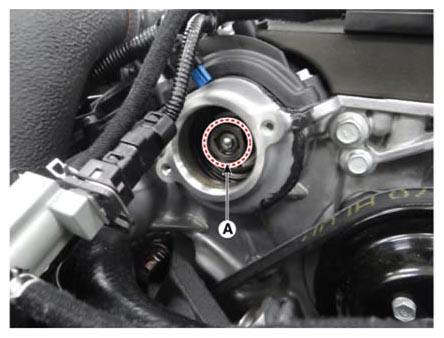

- Remove the installation nut (A), and then remove the CVVT oil control valve from the engine.
