Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Lighting System - " OVERHEAD CONSOLE LAMP  ")

  3. Check the continuity of between terminals.

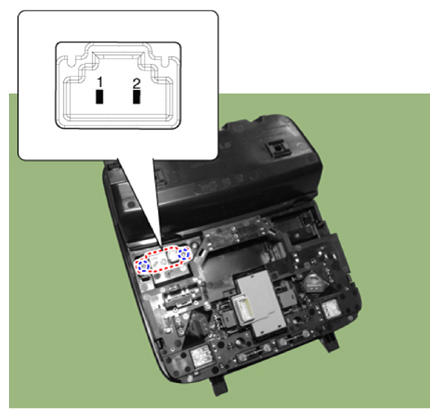

    Fig 1: Hands Free Mic Connector Terminals
    G12832267Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Checking Continuity Between Hands Free Mic Terminals
    G12832268Courtesy of KIA MOTORS AMERICA, INC.
