Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - " STEERING WHEEL ")
Remove the steering wheel bezel assembly (A) after loosening the mounting screws.

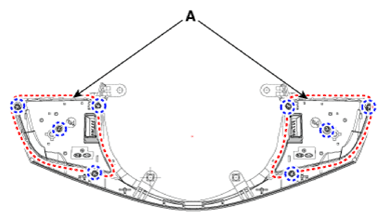

Fig 1: Steering Wheel Bezel Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

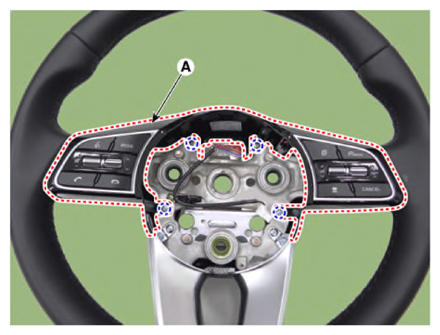

Fig 2: Locating Steering Wheel Bezel Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) from steering wheel remote control.

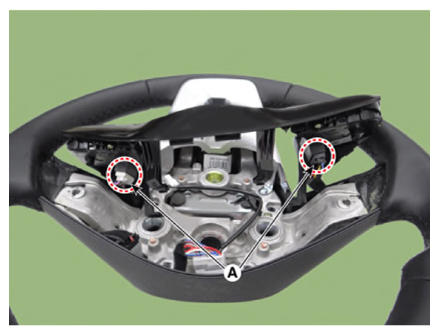

Fig 3: Locating Steering Wheel Remote Control Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel remote control (A) from bezel after loosening the screws.

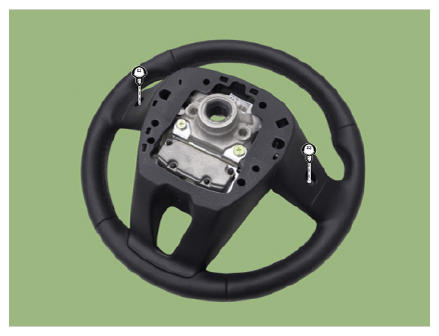

Fig 4: Locating Steering Wheel Remote Control With Screws
Courtesy of KIA MOTORS AMERICA, INC.
