Components & Components Location: Components

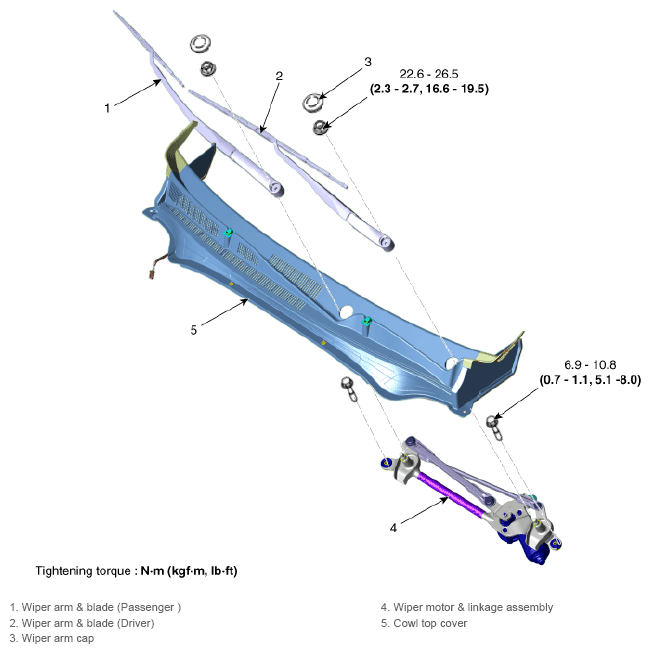

Fig 1: Front Wiper Arm Components Location With Torque Specification
G12832817Courtesy of KIA MOTORS AMERICA, INC.
