FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

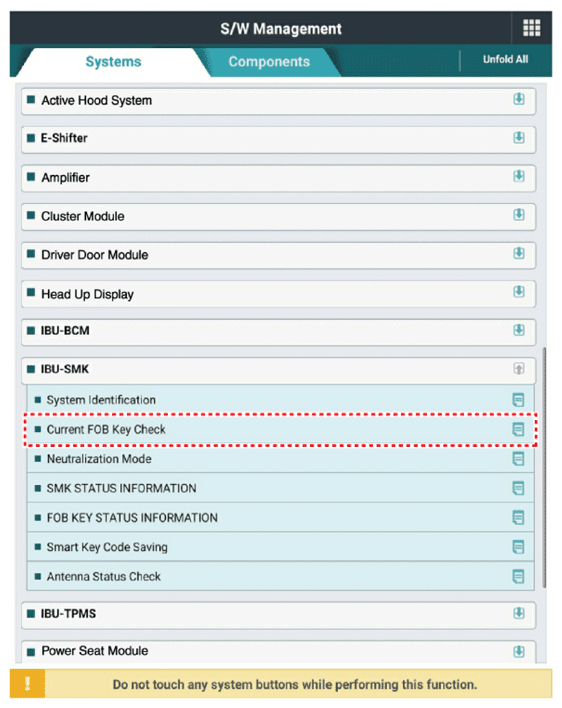

    G12832743Courtesy of KIA MOTORS AMERICA, INC.

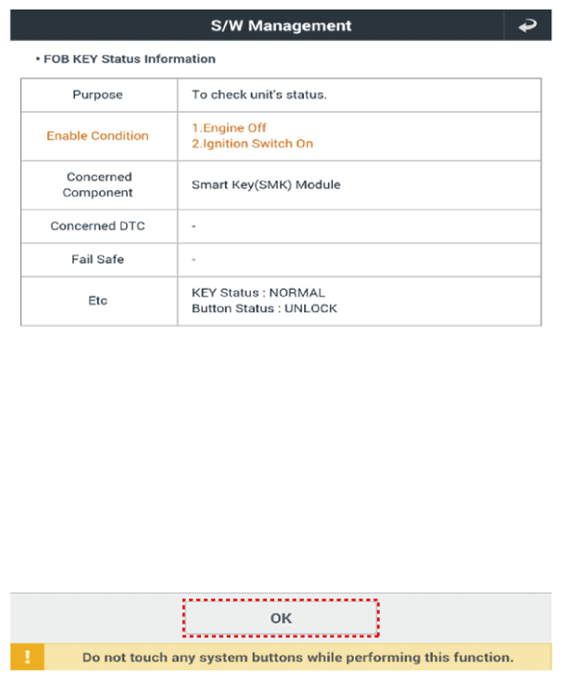

    G12832744Courtesy of KIA MOTORS AMERICA, INC.

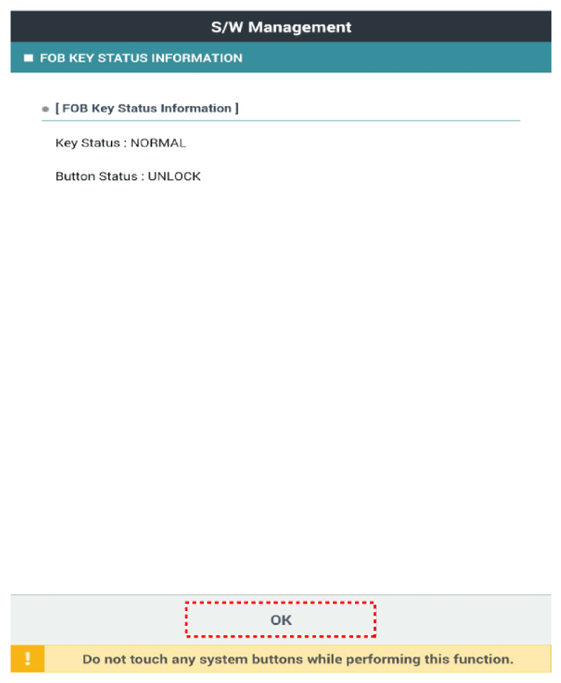

    G12832745Courtesy of KIA MOTORS AMERICA, INC.
