Components Location

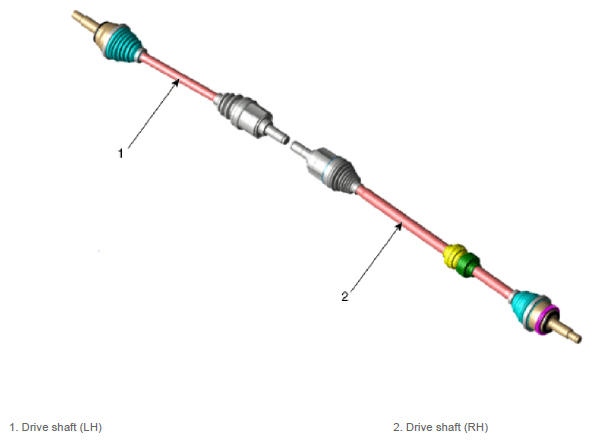

G12830621Courtesy of KIA MOTORS AMERICA, INC.

[RH]

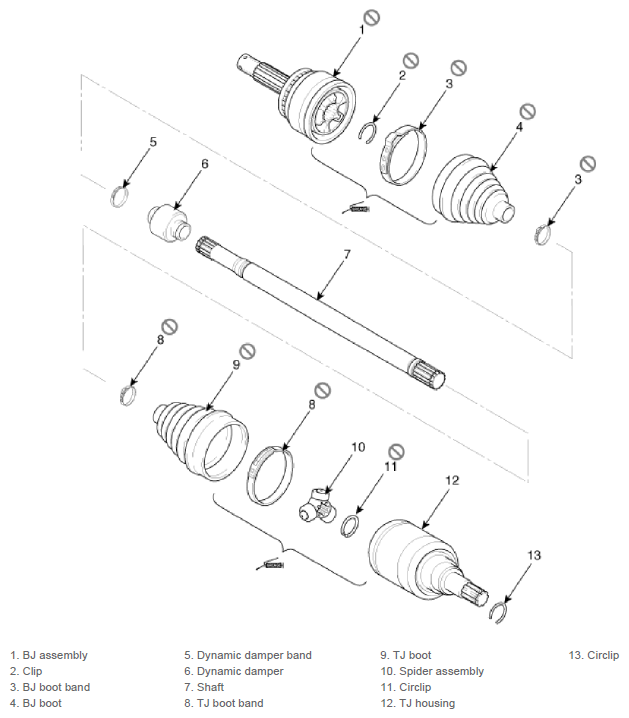

G12830622Courtesy of KIA MOTORS AMERICA, INC.

[LH]

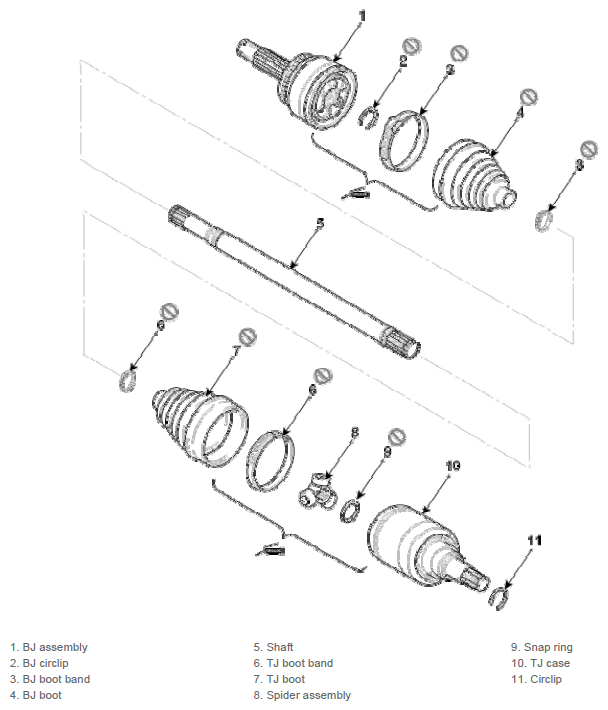

G12830623Courtesy of KIA MOTORS AMERICA, INC.
