Repair Procedures: Replacement: Bulb

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

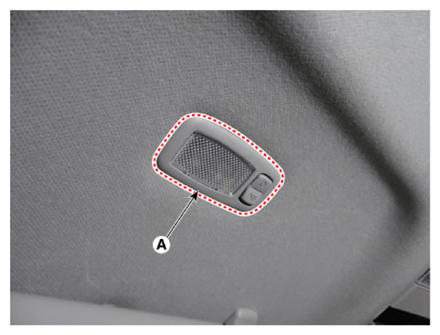

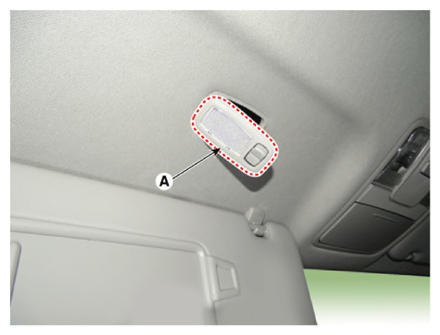

  1. Remove the room lamp lens (A) by using a screwdriver or remover.
    G14563985Courtesy of KIA MOTORS AMERICA, INC.
    G14563986Courtesy of KIA MOTORS AMERICA, INC.

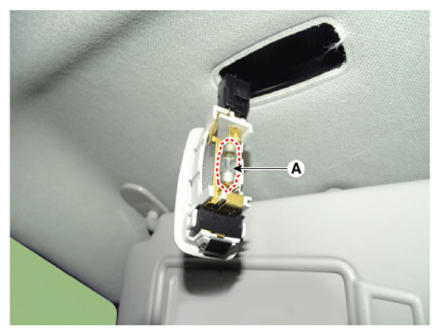

  2. Replace the bulb (A) by pressing the fixing clip.
    G14563987Courtesy of KIA MOTORS AMERICA, INC.
