System operation Spec - Front sensor
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
When the system has the power (after IGN ON and D gear), MICOM checks every sensor channel. In case no error is found, it sounds every 500 mS afterward. However, when error is found even in one sensor, it sounds buzzer corresponding to faulty sensor instead of the initial starting alarm. When PAS ON switch is OFF, system doesn't work. Function for normal mode entrance is as follows.

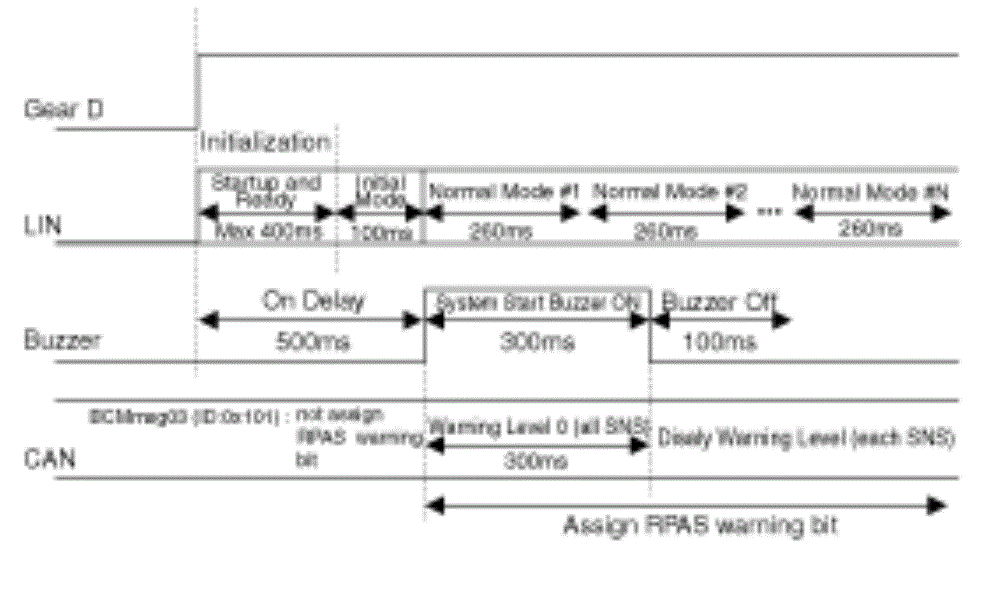

* In the initial mode, IPM (BCM) judges only sensor failure.

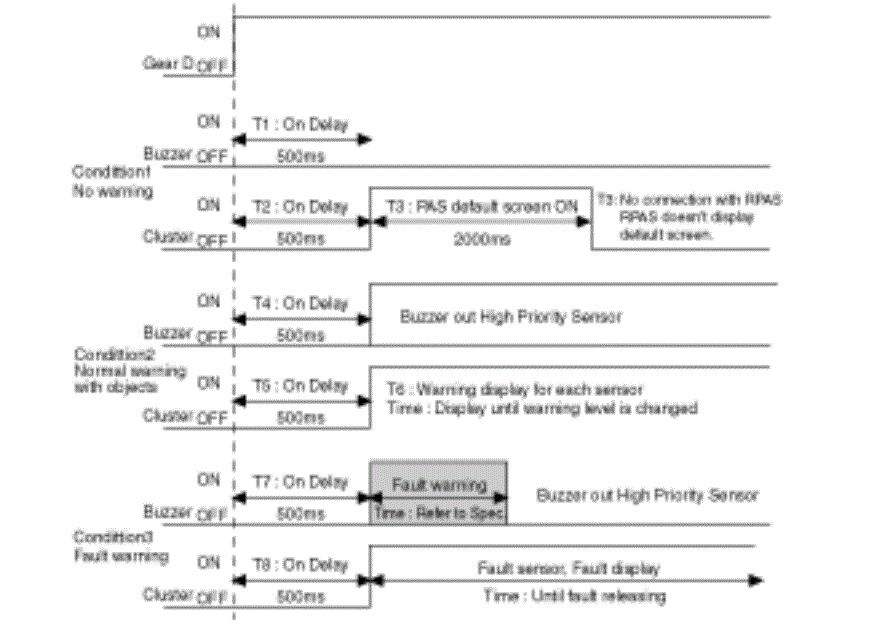

When the gear is on D, system function is as follows.

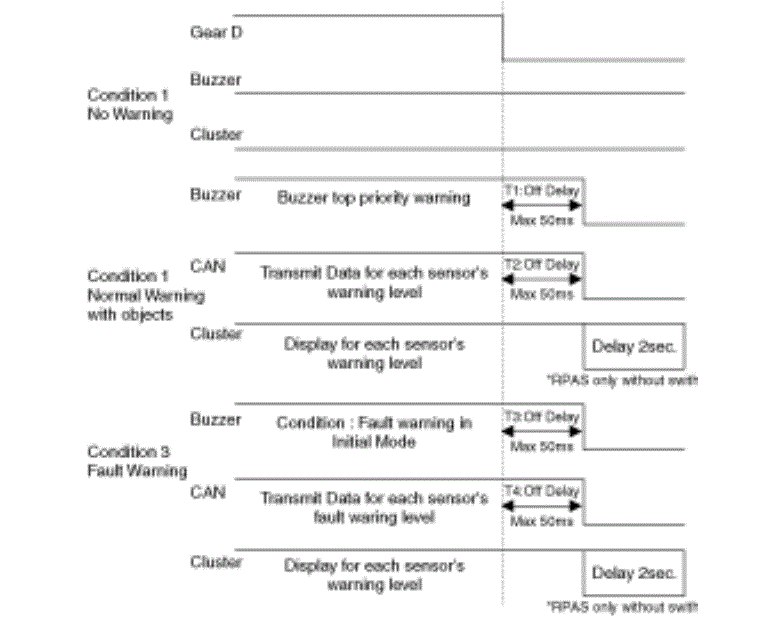

When gear is released from D, system function is as follows.
