Driver's Mode Actuator

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver shower duct (A) after loosening the mounting screw.
    G11938332Courtesy of KIA MOTORS AMERICA, INC.
  4. Lower the steering column after loosening the mounting bolts.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

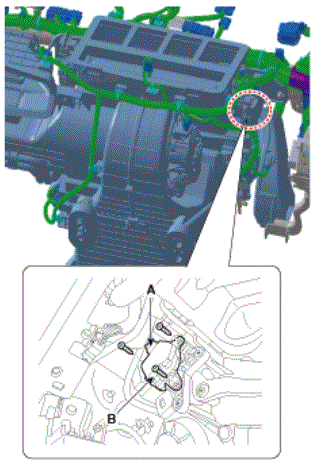

  5. Disconnect the mode control actuator connector (A).

    And then remove the mode control actuator (B) after loosening the mounting screws.

    G12822766Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
