Monitor DTC Status

Inspection Condition	Inspection Procedure

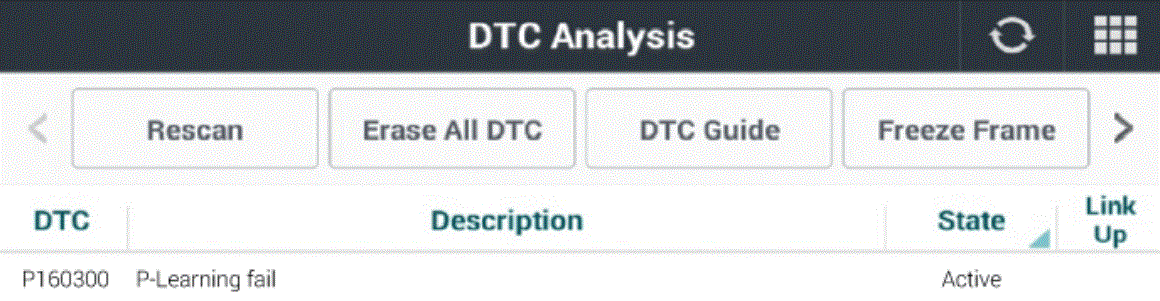

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault	Retry learning again if P-learning fails. If learning is not completed, replace the IVT and go to Verification Of Repair procedure. Refer to P-Learning (Line/Pulley Pressure Learning) Procedure for learning method.
History/Pending Fault	Go to Verification Of Repair procedure.
