Engine Mounting Bracket

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

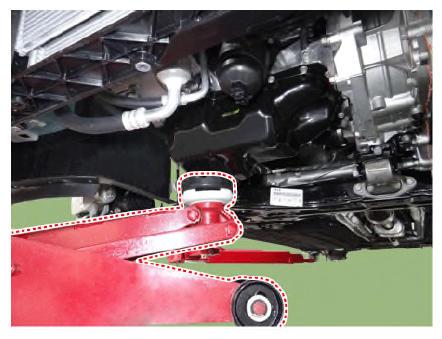

Install the jack under the edge of lower oil pan to support the engine.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.

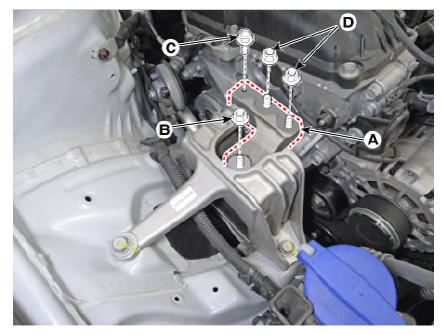

Remove the engine mounting support bracket (A).
Tightening torque

Nut (B): 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Bolt (C), Nuts (D): 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

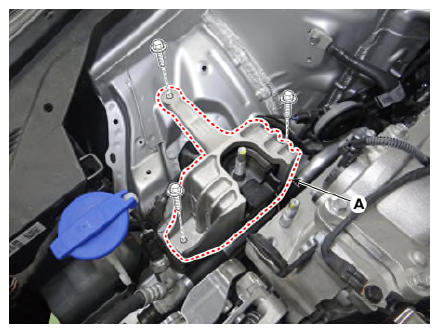

Remove the engine mounting bracket (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
