General Safety Information And Caution: Inspection

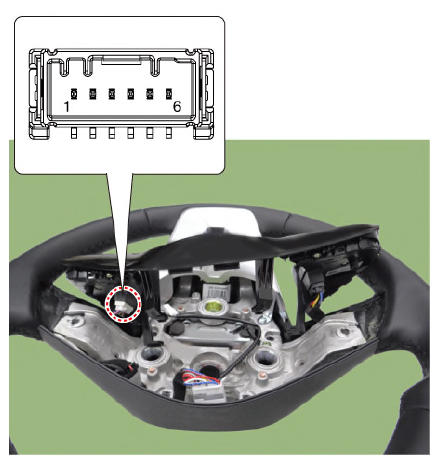

- Check for resistance between terminals in each switch position (RH).
CONNECTOR TERMINAL AND RESISTANCE SPECIFICATION - CRUISE
| Switch | Connector terminal | Resistance (±3%) |
|---|---|---|
| Cancel | 2-6 | 390 Ω |
| SET - | 610 Ω | |
| RES + | 910 Ω | |
| Cruise ON/OFF | 1.38 kΩ | |
| Cruise & Speed Limit ON/OFF | 2.13 kΩ | |
| SCC (Following distance control) | 3.63 kΩ |
