Repair Procedures: Installation

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the shift lever into the "N" position.

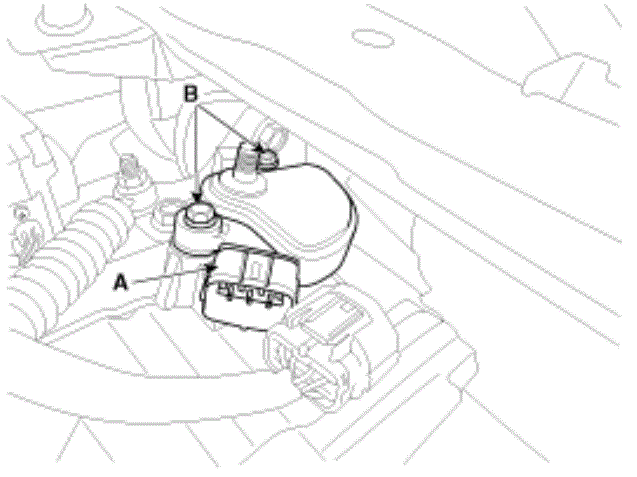

  2. Install the inhibitor switch (A) and then tighten the bolt (B).
    NOTE: Fasten the bolt loosely to adjust.
    G12825943Courtesy of KIA MOTORS AMERICA, INC.

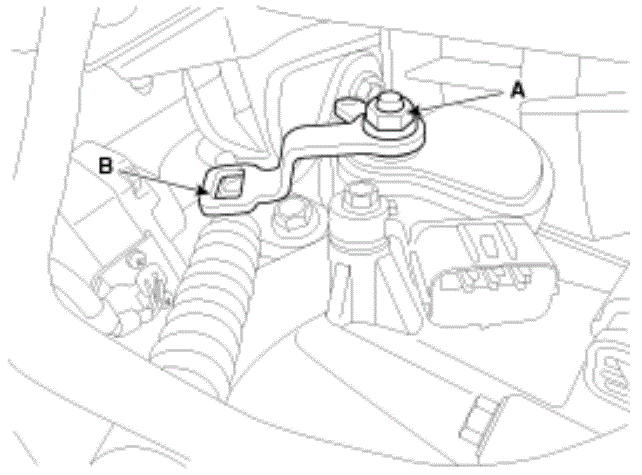

  3. Install the manual control lever (B) and then tighten the nut (A).
    NOTE: Fasten the bolt loosely to adjust.
    G12825944Courtesy of KIA MOTORS AMERICA, INC.

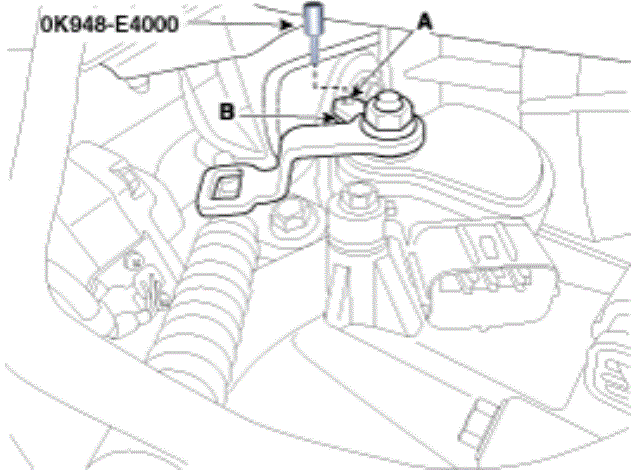

  4. Align the hole (A) in the manual control lever with the "N" position hole (B) of the inhibitor switch and then insert the SST inhibitor switch guide pin (0K948-E40000).
    G12825945Courtesy of KIA MOTORS AMERICA, INC.

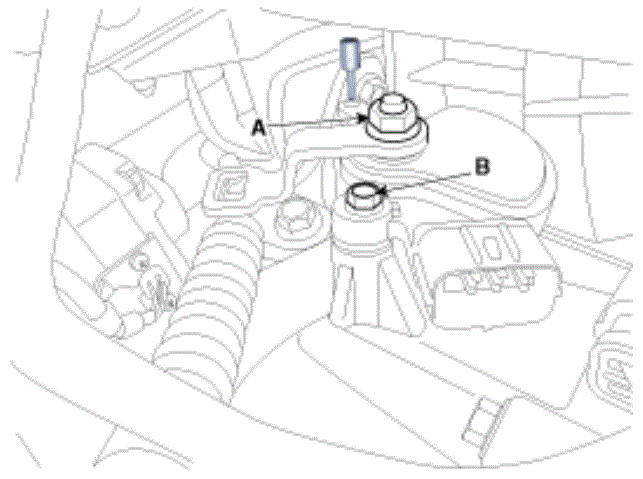

  5. Tighten the nut (A) and the bolt 2 ea (B) with the specific torque.

    Tightening torque:

    1. 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
    2. 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
    G12825946Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the SST (0K948-E40000).

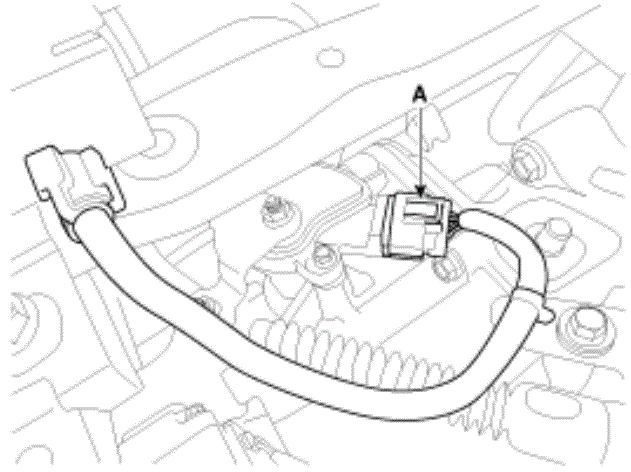

  7. Connect the inhibitor switch connector (A).
    G12825947Courtesy of KIA MOTORS AMERICA, INC.

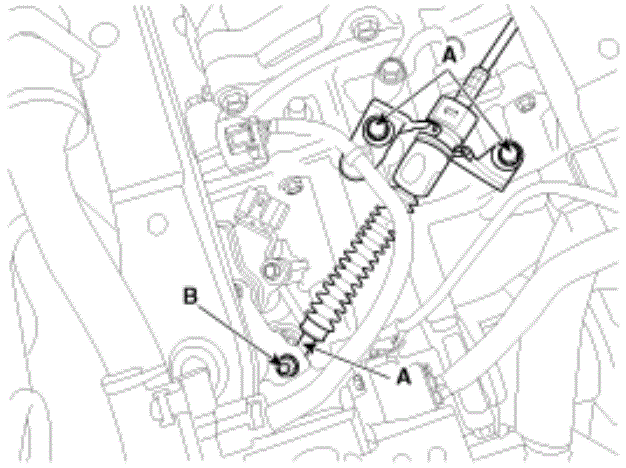

  8. Install the shift cable and then tighten the nut (B).
    NOTE: Fasten the bolt loosely to adjust.
    G12825948Courtesy of KIA MOTORS AMERICA, INC.

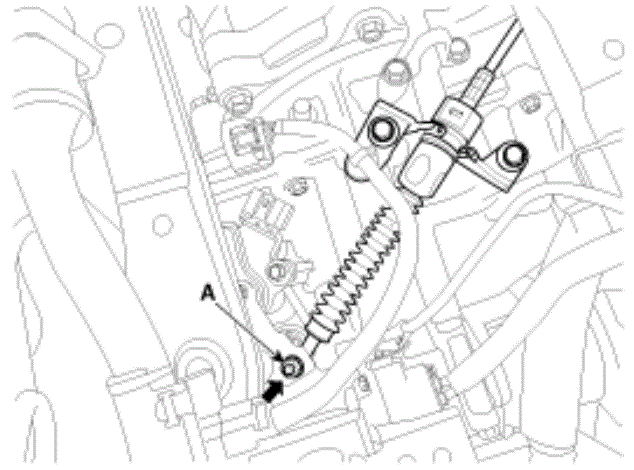

  9. Push the shift cable adhere to the direction of the arrow and then tighten the nut.

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

    G12825949Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the electric power control unit (EPCU).

    (Refer to "INSTALLATION ")

  11. Install the on-board charger (OBC).

    (Refer to "ON-BOARD CHARGER (OBC) ")

  12. Install the high voltage joint box.

    (Refer to "HIGH VOLTAGE JOINT BOX ")

  13. Install the power electric cover.

    (Refer to "POWER ELECTRIC COVER ")

  14. Install the auxiliary 12V battery and auxiliary 12V battery tray.

    (Refer to "AUXILIARY 12V BATTERY ")

  15. Install the high voltage.

    (Refer to "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
