Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

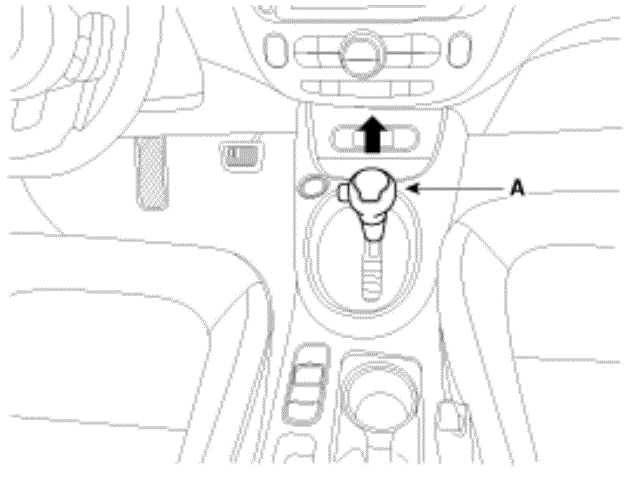

  1. Remove the shift lever knob & boots assembly (A) by Pulling in the upside.
    G12825951Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to "FLOOR CONSOLE ASSEMBLY ")

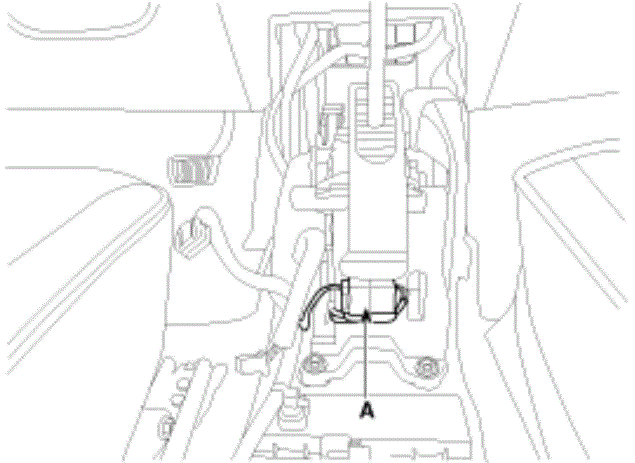

  3. Disconnect the shift lever switch connector (A).
    G12825952Courtesy of KIA MOTORS AMERICA, INC.

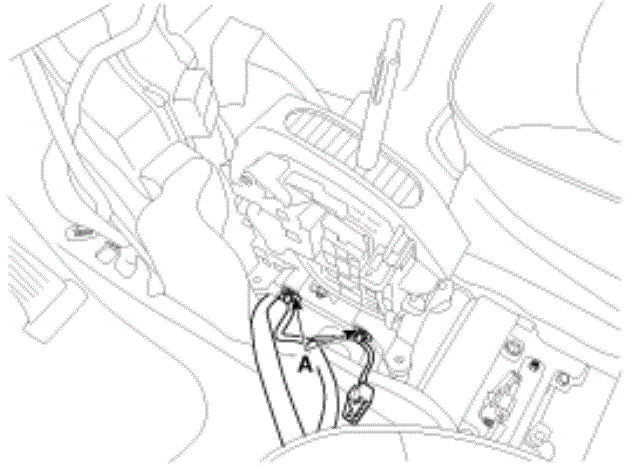

  4. Remove the wiring fastener (A) from the shift lever assembly.
    G12825953Courtesy of KIA MOTORS AMERICA, INC.

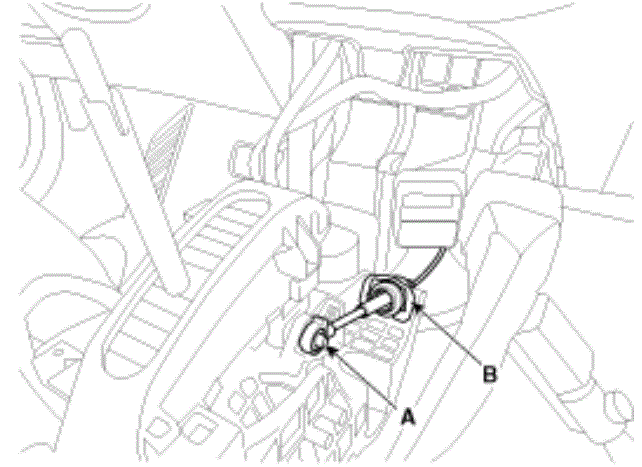

  5. Separate the lever pin (B) and then remove the shift cable (A).
    G12825954Courtesy of KIA MOTORS AMERICA, INC.

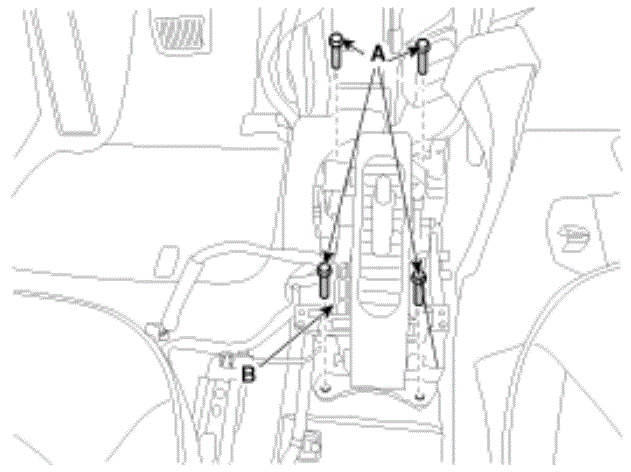

  6. Remove the shift lever assembly (B) by loosening the bolts (A).

    Tightening torque:

    1.0 ~ 1.4 kgf.m

    G12825955Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
    NOTE: When installing, set room side shift lever and T/M side lever to "N" position.
