Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing and installing the tailgate, an assistant is necessary.

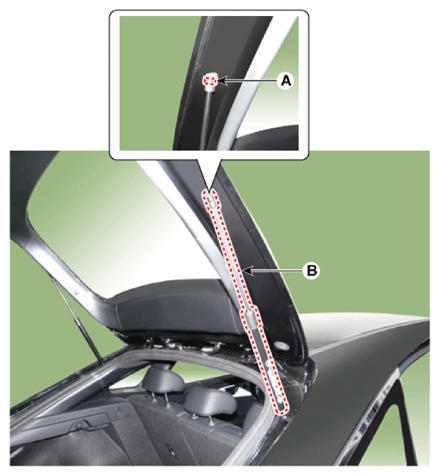

  1. Using a screwdriver, lift the socket clips (A) up slightly on both ends of the liftgate lifter (B).
    G14562181Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse the removal procedure.

    Information

    Make sure the tailgate locks/unlocks and opens/closes properly.
