Repair Procedures: Removal

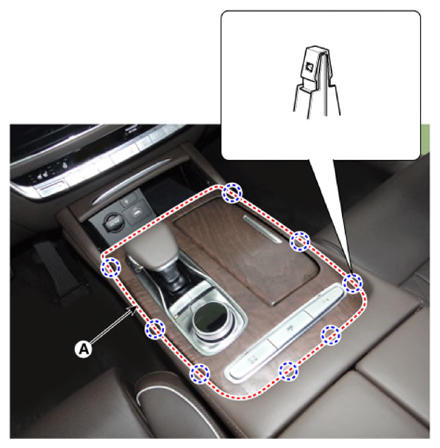

  1. Remove the console upper cover (A) by using a flat-tip screwdriver or remover.
    NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
    G13143444Courtesy of KIA MOTORS AMERICA, INC.

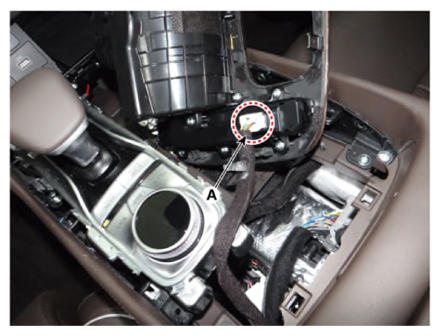

  2. Disconnect the connector (A) from the console upper cover.
    G13143445Courtesy of KIA MOTORS AMERICA, INC.

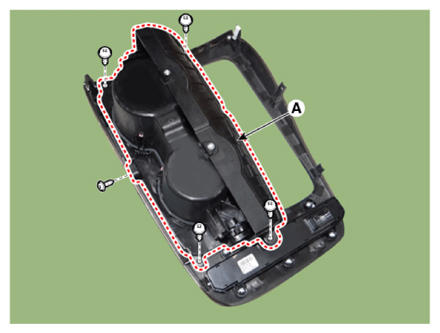

  3. Remove the cup holder (A) after loosening the mounting screws.
    G13143446Courtesy of KIA MOTORS AMERICA, INC.

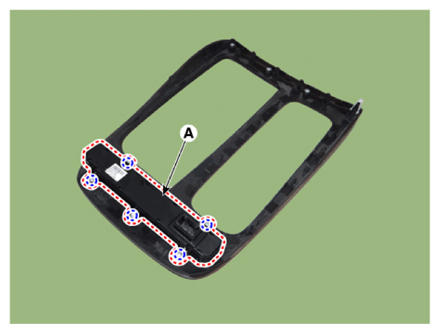

  4. Remove the switch assembly (A) after loosening the mounting screws.
G13143447Courtesy of KIA MOTORS AMERICA, INC.
