Configuration of hardware and related terms

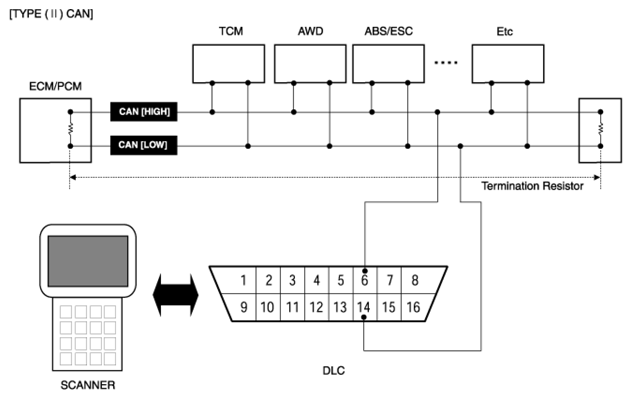

  1. GST (Generic scan tool)
    G12998159Courtesy of KIA MOTORS AMERICA, INC.
  2. MIL (Malfunction indication lamp) - MIL activity by transistor
    G12998160Courtesy of KIA MOTORS AMERICA, INC.

    The Malfunction Indicator Lamp (MIL) is connected between ECM or PCM-terminal Malfunction Indicator Lamp and battery supply (open collector amplifier).

    In most cars, the MIL will be installed in the instrument panel. The lamp amplifier can not be damaged by a short circuit.

    Lamps with a power dissipation much greater than total dissipation of the MIL and lamp in the tester may cause a fault indication.

    At ignition ON and engine revolution (RPM)< MIN. RPM, the MIL is switched ON for an optical check by the driver.

  3. MIL illumination

    When the ECM or PCM detects a malfunction related emission during the first driving cycle, the DTC and engine data are stored in the freeze frame memory. The MIL is illuminated only when the ECM or PCM detects the same malfunction related to the DTC in two consecutive driving cycles.

  4. MIL elimination
    • Misfire and Fuel System Malfunctions:

      For misfire or fuel system malfunctions, the MIL may be eliminated if the same fault does not reoccur during monitoring in three subsequent sequential driving cycles in which conditions are similar to those under which the malfunction was first detected.

    • All Other Malfunctions:

    For all other faults, the MIL may be extinguished after three subsequent sequential driving cycles during which the monitoring system responsible for illuminating the MIL functions without detecting the malfunction and if no other malfunction has been identified that would independently illuminate the MIL according to the requirements outlined above.

  5. Erasing a fault code

    The diagnostic system may erase a fault code if the same fault is not re-registered in at least 40 engine warm-up cycles, and the MIL is not illuminated for that fault code.

  6. Communication Line (CAN)
    • Bus Topology: Line (bus) structure
    • Wiring: Twisted pair wire
    • Off Board DLC Cable Length: Max. 5m
    • Data Transfer Rate
      • Diagnostic: 500 kbps
      • Service Mode (Upgrade, Writing VIN): 500 or 1Mbps)
  7. Driving cycle

    A driving cycle consists of engine start up, and engine shut off.

  8. Warm-up cycle

    A warm-up cycle means sufficient vehicle operation such that the engine coolant temperature has risen by at least 40 degrees Fahrenheit from engine starting and reaches a minimum temperature of at least 160 degrees Fahrenheit.

  9. DTC format
    • Diagnostic Trouble Code (SAE J2012)
    • DTCs used in OBD-II vehicles will begin with a letter and are followed by four numbers.

    The letter of the beginning of the DTC identifies the function of the monitored device that has failed. A "P" indicates a powertrain device, "C" indicates a chassis device. "B" is for body device and "U" indicates a network or data link code. The first number indicates if the code is generic (common to all manufacturers) or if it is manufacturer specific. A "0" & "2" indicates generic, "1" indicates manufacturer-specific. The second number indicates the system that is affected with a number between 1 and 7.

    The following is a list showing what numbers are assigned to each system.

    • 1: Fuel and air metering
    • 2: Fuel and air metering (injector circuit malfunction only)
    • 3: Ignition system or misfire
    • 4: Auxiliary emission controls
    • 5: Vehicle speed controls and idle control system
    • 6: Computer output circuits
    • 7: Transmission

    The last two numbers of the DTC indicates the component or section of the system where the fault is located.

  10. Freeze frame data

When a freeze frame event is triggered by an emission related DTC, the ECM or PCM stores various vehicle information as it existed the moment the fault occurred. The DTC number along with the engine data can be useful in aiding a technician in locating the cause of the fault. Once the data from the 1st driving cycle DTC occurrence is stored in the freeze frame memory, it will remain there even when the fault occurs again (2nd driving cycle) and the MIL is illuminated.

3. OBD-II Readiness Test

[Kia Motors Drive Cycle]

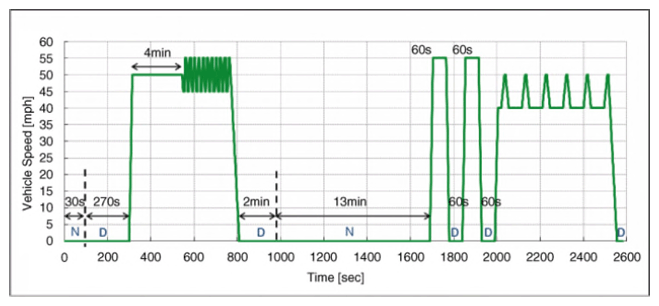

Kia OBDII Drive Cycle is designed to execute and complete the OBDII monitors. To complete a specific monitor for repair verification, follow the Drive Cycle chart below.

Kia OBDII Drive Cycle consists of two modes (Mode 1 and Mode 2) and the Mode 2 is to perform the catalyst diagnostics on Dephi EMS only.

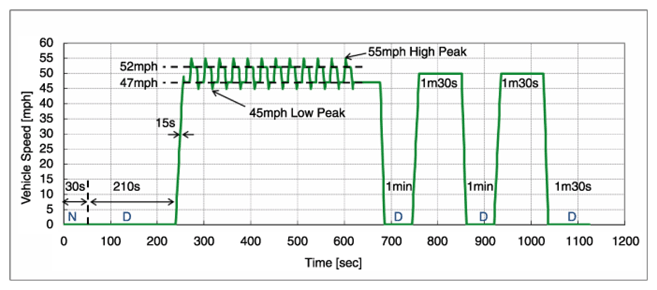

G12998162Courtesy of KIA MOTORS AMERICA, INC.
Mode No Operation Speed (mph) Duration(s) E/Time(s) Remarks
Mode 1 1 Engine Start 0 0 0 ECT@ Start 32-104° F
2 Idling (N) 0 30 30 Neutral Range
3 Idling (D) 0 270 300 D Range
4 Acceleration 0 → 50 15 315
5 Steady Speed 50 230 545
6 Deceleration 50 → 45 5 550
7 Steady Speed 45 5 555
8 Acceleration 45 → 55 5 560
9 Steady Speed 55 5 565
10 Deceleration 55 → 45 5 570
11 Steady Speed 45 5 575
12 Repeat 8 through 11 ten times. - 180 755
13 Acceleration 45 → 55 5 760
14 Steady Speed 55 5 765
15 Deceleration 55 → 0 45 810
16 Idling (D) 0 120 930 D Range
17 Idling (N) 0 760 1690 Neutral Range
18 Acceleration 0 → 55 15 1705
19 Steady Speed 55 60 1765
20 Deceleration 55 → 0 15 1780
21 Idling (D) 0 60 1840 D Range
22 Acceleration 0 → 55 15 1855
23 Steady Speed 55 60 1915
24 Deceleration 55 → 0 15 1930
25 Idling (D) 0 60 1990 D Range
26 Acceleration 0 → 40 15 2005
27 Steady Speed 40 15 2020
28 Acceleration 40 → 50 15 2035
29 Steady Speed 50 5 2040
30 Deceleration 50 → 40 15 2055
31 Steady Speed 40 60 2115
32 Repeat 28 through 31 five times. - 380 2495
33 Acceleration 40 → 50 15 2510
34 Steady Speed 50 5 2515
Mode 1 35 Deceleration 50 → 0 40 2555
36 Idling (D) 0 25 2580 D Range
Mode 2 1 Engine Start 0 0 0
2 Idling (N) 0 30 30 Neutral Range
3 Idling (D) 0 210 240 D Range
4 Acceleration 0 → 49 16 256
5 Deceleration 49 → 47 2 258 Lift Foot Up: APS = 0
6 Steady Speed 47 10 268
7 Acceleration 47 → 55 4 272 Middle Tip In or Deep Accel
8 Deceleration 55 → 52 3 275 Lift Foot Up: APS = 0
9 Steady Speed 52 10 285
10 Deceleration 52 → 45 3 288 Lift Foot Up: APS = 0
11 Acceleration 45 → 47 2 290
12 Repeat 6 through 11 twelve times. - 330 620
13 Steady Speed 47 57 677
14 Deceleration 47 → 0 8 685
15 Idling (D) 0 60 745 D Range
16 Acceleration 0 → 50 15 760
17 Steady Speed 50 90 850
18 Deceleration 50 → 0 10 860
19 Repeat 15 through 18 two times. - 175 1035
20 Idling (D) 0 90 1125 D Range
  1. Catalyst monitoring

    The catalyst efficiency monitor is a self-test strategy within the ECM or PCM that uses the downstream Heated Oxygen Sensor (HO2S) to determine when a catalyst has fallen below the minimum level of effectiveness in its ability to control exhaust emission.

  2. Misfire monitoring

    Misfire is defined as the lack of proper combustion in the cylinder due to the absence of spark, poor fuel metering, or poor compression. Any combustion that does not occur within the cylinder at the proper time is also a misfire. The misfire detection monitor detects fuel, ignition or mechanically induced misfires. The intent is to protect the catalyst from permanent damage and to alert the customer of an emission failure or an inspection maintenance failure by illuminating the MIL. When a misfire is detected, special software called freeze frame data is enabled. The freeze frame data captures the operational state of the vehicle when a fault is detected from misfire detection monitor strategy.

  3. Fuel system monitoring

    The fuel system monitor is a self-test strategy within the ECM or PCM that monitors the adaptive fuel table The fuel control system uses the adaptive fuel table to compensate for normal variability of the fuel system components caused by wear or aging. During normal vehicle operation, if the fuel system appears biased lean or rich, the adaptive value table will shift the fuel delivery calculations to remove bias.

  4. Engine cooling system monitoring

    The cooling system monitoring is a self-test strategy within the ECM or PCM that monitors ECTS (Engine Coolant Temperature Sensor) and thermostat about circuit continuity, output range, rationality faults.

  5. O2 sensor monitoring

    OBD-II regulations require monitoring of the upstream Heated O2 Sensor (H2OS) to detect if the deterioration of the sensor has exceeded thresholds. An additional HO2S is located downstream of the Warm-Up Three Way Catalytic Converter (WU-TWC) to determine the efficiency of the catalyst. Although the downstream H2OS is similar to the type used for fuel control, it functions differently. The downstream HO2S is monitored to determine if a voltage is generated. That voltage is compared to a calibrated acceptable range.

  6. Evaporative emission system monitoring

    The EVAP. monitoring is a self-test strategy within the ECM or PCM that tests the integrity of the EVAP. system. The complete evaporative system detects a leak or leaks that cumulatively are greater than or equal to a leak caused by a 0.040 inch and 0.020 inch diameter orifice.

  7. Air conditioning system monitoring

    The A/C system monitoring is a self-test strategy within the ECM or PCM that monitors malfunction of all A/C system components at A/C ON.

  8. Comprehensive components monitoring

    The comprehensive components monitoring is a self-test strategy within the ECM or PCM that detects fault of any electronic powertrain components or system that provides input to the ECM or PCM and is not exclusively an input to any other OBD-II monitor.

  9. A/C system component monitoring

    Requirement:

    If a vehicle incorporates an engine control strategy that alters off idle fuel and/or spark control when the A/C system is on, the OBD II system shall monitor all electronic air conditioning system components for malfunctions that cause the system to fail to invoke the alternate control while the A/C system is on or cause the system to invoke the alternate control while the A/C system is off.

    Additionally, the OBD II system shall monitor for malfunction all electronic air conditioning system components that are used as part of the diagnostic strategy for any other monitored system or component.

    Implementation plan:

    No engine control strategy incorporated that alters off-idle fuel and/or spark control when A/C system is on. Malfunction of A/C system components is not used as a part of the diagnostic strategy for other monitored system or component.
