Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - " GLOVE BOX HOUSING  ")

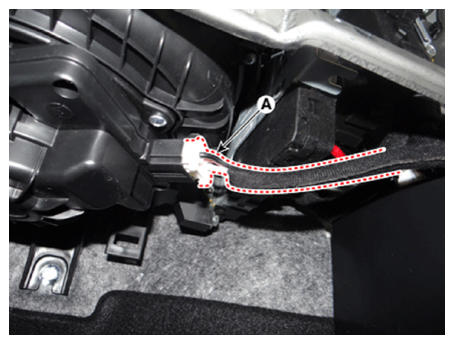

  3. Disconnect the blower motor connector (A).
    G12697995Courtesy of KIA MOTORS AMERICA, INC.

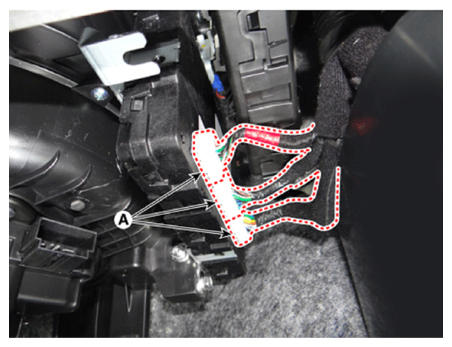

  4. Disconnect the body control module connectors (A).
    G12697996Courtesy of KIA MOTORS AMERICA, INC.

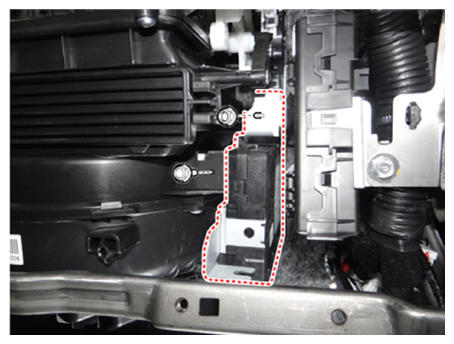

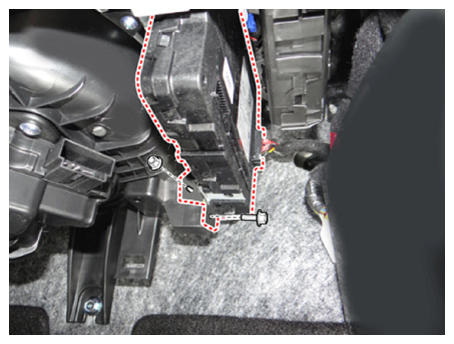

  5. Remove the body control module (A) after loosening the mounting bolts and nuts.
    G12697997Courtesy of KIA MOTORS AMERICA, INC.
    G12697998Courtesy of KIA MOTORS AMERICA, INC.

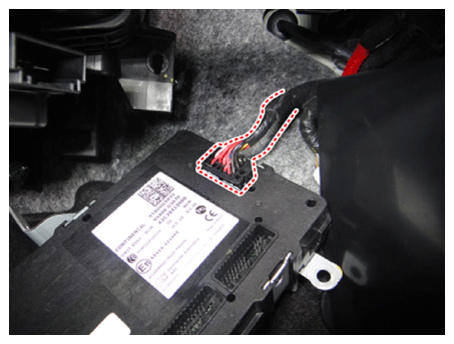

  6. Remove the body control module (B) after disconnecting the connector (A)
    G12697999Courtesy of KIA MOTORS AMERICA, INC.
