Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to " STEERING WHEEL  ")

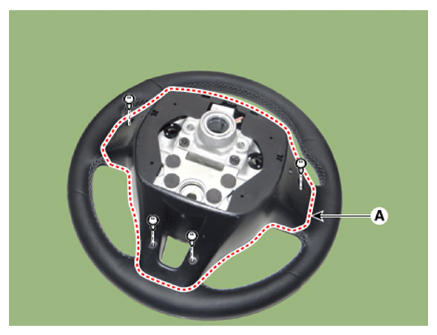

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G12697960Courtesy of KIA MOTORS AMERICA, INC.
    G12697961Courtesy of KIA MOTORS AMERICA, INC.

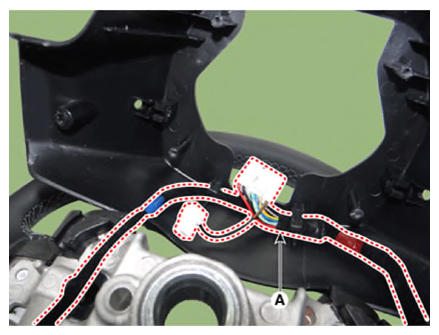

  4. Remove the wiring connector (A) from the steering back cover.
    G12697962Courtesy of KIA MOTORS AMERICA, INC.

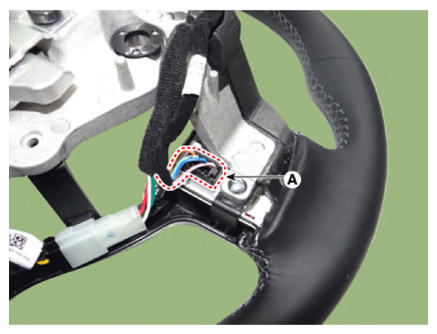

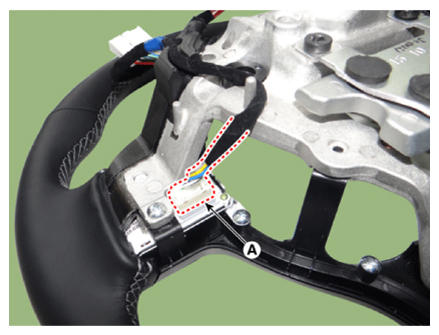

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G12697963Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12697964Courtesy of KIA MOTORS AMERICA, INC.

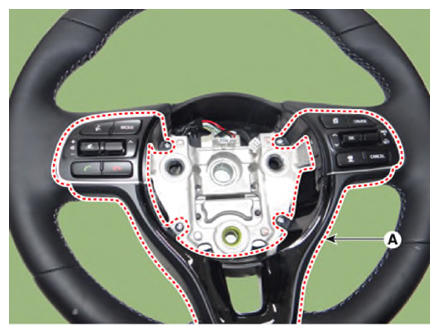

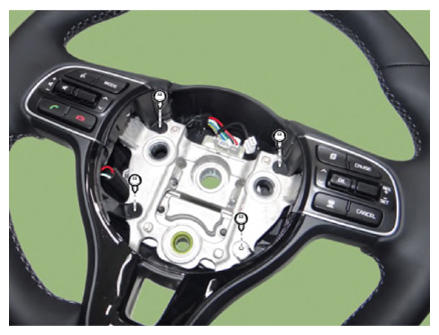

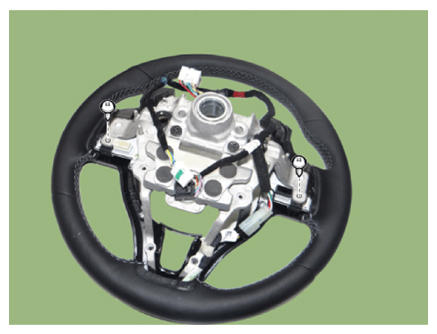

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G12697965Courtesy of KIA MOTORS AMERICA, INC.
    G12697966Courtesy of KIA MOTORS AMERICA, INC.

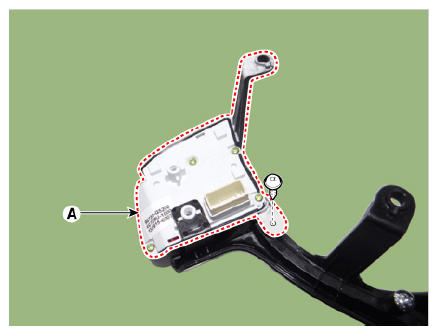

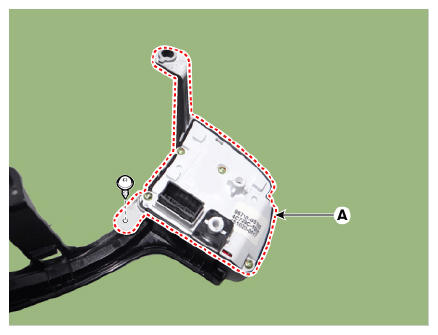

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

    G12697967Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12697968Courtesy of KIA MOTORS AMERICA, INC.
