Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - " GLOVE BOX HOUSING  ")

  3. Remove the body control module (BCM).

    (Refer to Body Electrical System - " BODY CONTROL MODULE (BCM)  ")

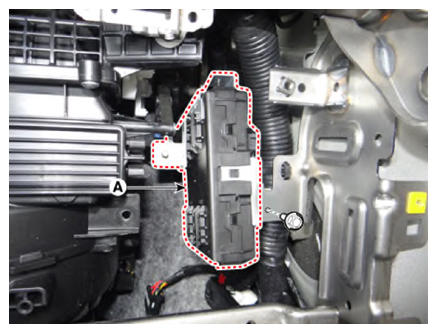

  4. Remove the smart key unit (A) after loosening the mounting bolt.
    G12996725Courtesy of KIA MOTORS AMERICA, INC.

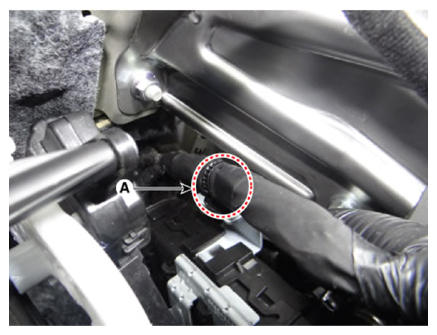

  5. Remove the smart key unit wiring harness mounting clip (A).
    G12996726Courtesy of KIA MOTORS AMERICA, INC.

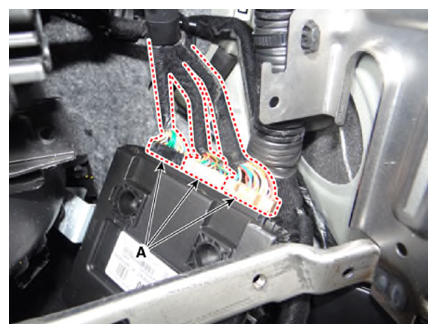

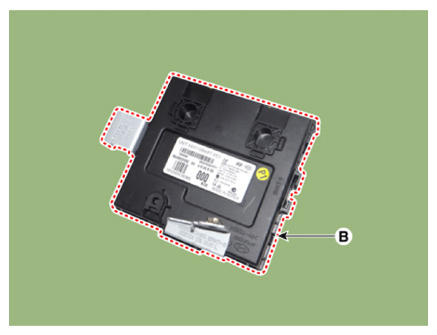

  6. Remove the smart key unit (B) after disconnecting the connectors (A).
G12996727Courtesy of KIA MOTORS AMERICA, INC.
G12996728Courtesy of KIA MOTORS AMERICA, INC.
