Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Set the front tires straight-ahead before assembling the steering wheel.
    CAUTION: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Disconnect the battery negative terminal, and wait for at least 30 seconds before beginning to work.
  3. While turning the steering wheel to left and right, press the parts marked A (3 red dotted circles) under the steering wheel and then remove the airbag module.
    G12697092Courtesy of KIA MOTORS AMERICA, INC.

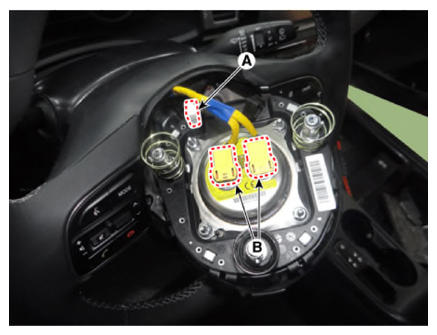

  4. Disconnect the air bag connector (A) and horn connector (B).
    G12697093Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel.

    (Refer to " STEERING WHEEL  ")

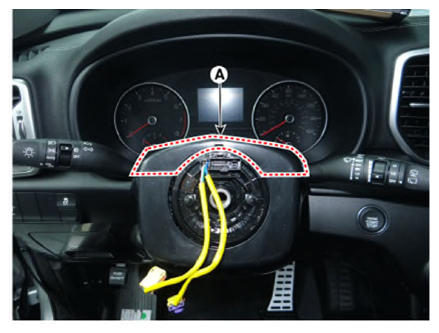

  6. Remove the upper steering wheel column shroud (A).
    G12697094Courtesy of KIA MOTORS AMERICA, INC.

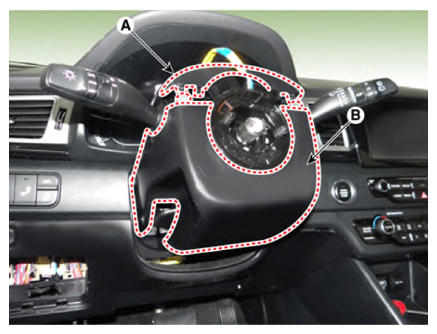

  7. Loosen the screws and remove the lower shroud (B).
    G12697095Courtesy of KIA MOTORS AMERICA, INC.

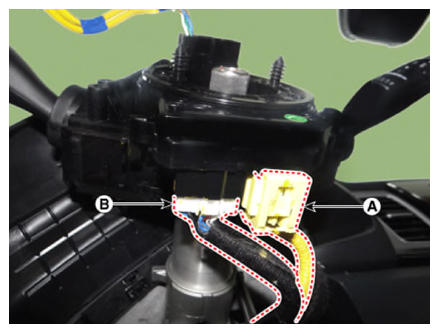

  8. Separate clock spring wiring harness connector (A) to the horn wiring harness connector (B) in a clock spring.
    G12697096Courtesy of KIA MOTORS AMERICA, INC.
