Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

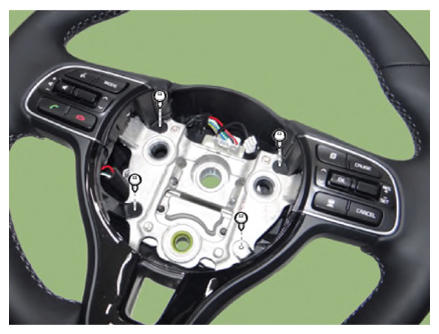

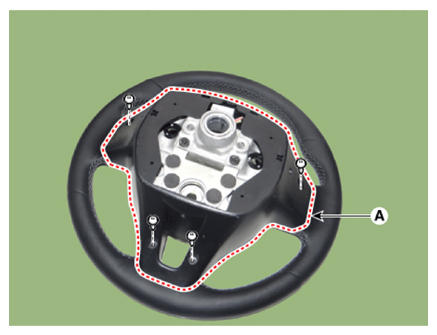

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G12695950Courtesy of KIA MOTORS AMERICA, INC.
    G12695951Courtesy of KIA MOTORS AMERICA, INC.

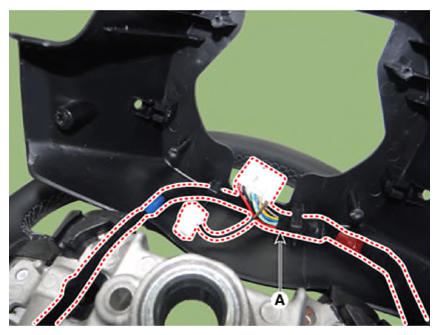

  4. Remove the wiring connector (A) from the steering back cover.
    G12695952Courtesy of KIA MOTORS AMERICA, INC.

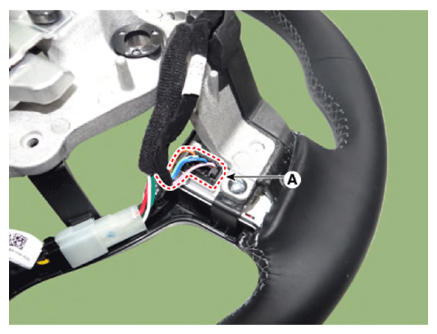

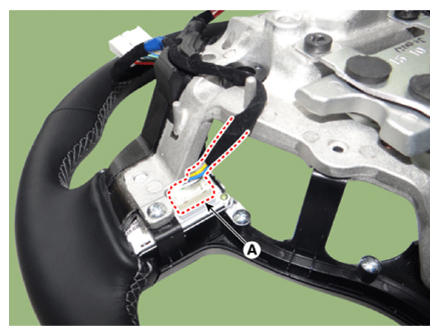

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G12695953Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12695954Courtesy of KIA MOTORS AMERICA, INC.

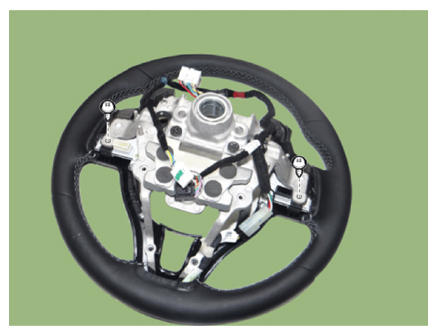

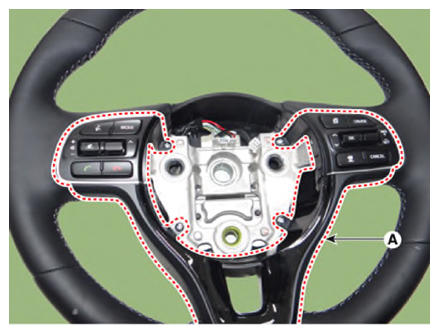

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G12695955Courtesy of KIA MOTORS AMERICA, INC.
    G12695956Courtesy of KIA MOTORS AMERICA, INC.

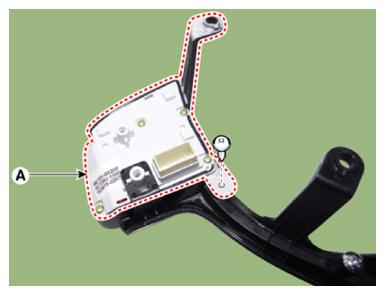

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.
    G12695957Courtesy of KIA MOTORS AMERICA, INC.
