Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead before assembling the steering wheel.
    CAUTION: If the steering wheel and the front tires are not set straight ahead together, it may affect the number of circulation of steering wheel and damage the cable inside the clock spring.
  2. Disconnect the battery negative terminal, and wait for at least 30 seconds before beginning to work.
  3. While turning the steering wheel to left and right, press the parts marked A (3 red dotted circles) under the steering wheel and then remove the airbag module.
    G13437577Courtesy of KIA MOTORS AMERICA, INC.

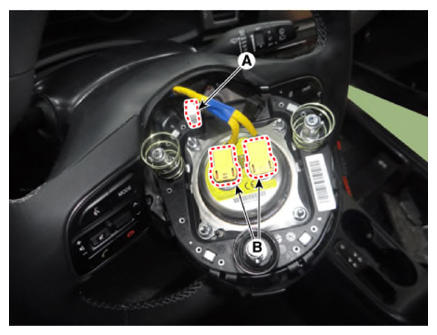

  4. Disconnect the air bag connector (A) and horn connector (B).
    G13437578Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

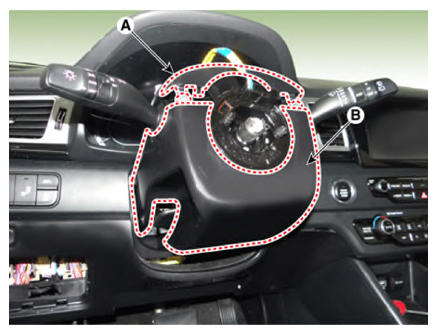

  6. Remove the upper steering wheel column shroud (A).
  7. Loosen the screws and remove the lower shroud (B).
    G13437579Courtesy of KIA MOTORS AMERICA, INC.

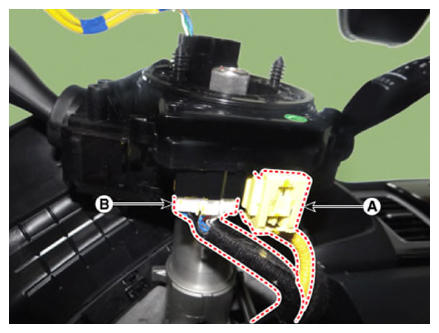

  8. Separate clock spring wiring harness connector (A) to the horn wiring harness connector (B) in a clock spring.
    G13437580Courtesy of KIA MOTORS AMERICA, INC.
