Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

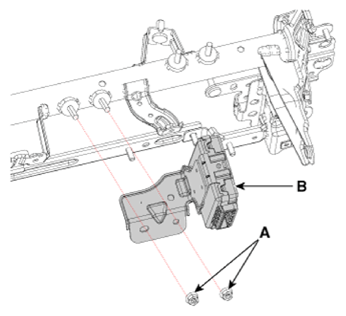

- Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).
(Refer to Body - "GLOVE BOX HOUSING ")
