Engine Control System - 1.6L (Except HEV)
>>
Electric Waste Gate Actuator (EWGA)
>>
Schematic Diagrams
>>

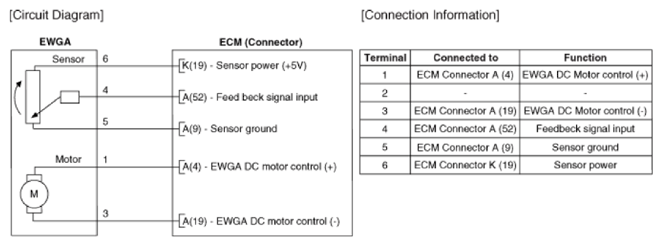

Circuit Diagram
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram: Notes
Courtesy of KIA MOTORS AMERICA, INC.
