Engine Control System - 1.6L (Except HEV)
>>
Engine Control Module (ECM)
>>
Schematic Diagrams
>>
ECM Terminal And Input/Output signal
>>
Notes
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
ECM Terminal And Input/Output signal: Notes
Courtesy of KIA MOTORS AMERICA, INC.

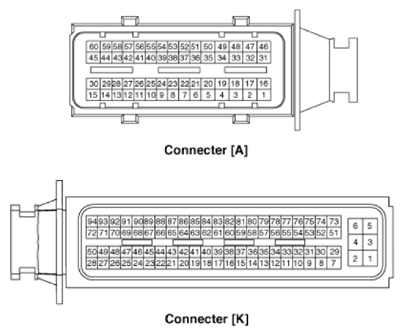

ECM Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
