Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

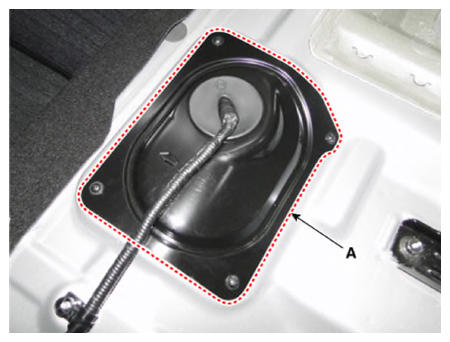

    G12915545Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel pump control module connector (A).
  5. Remove the fuel pressure control module (A) after removing the screws.

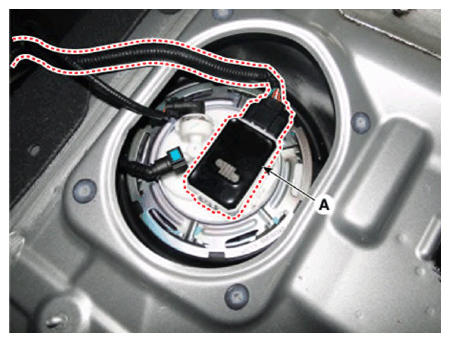

G12915546Courtesy of KIA MOTORS AMERICA, INC.
