Cluster module variant coding

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Verify vehicle options and have VIN code in hand.
Perform "CLU VARIANT CODING " in the "Vehicle S/W Management" with KDS/GDS.
Check for DTCs in the system.

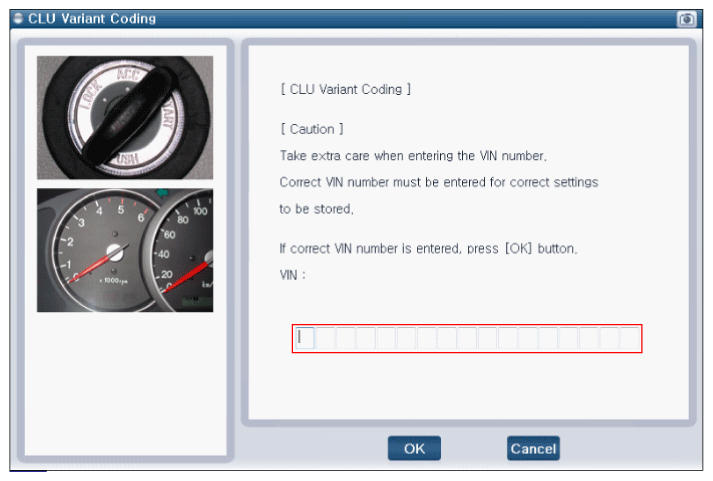

Fig 1: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

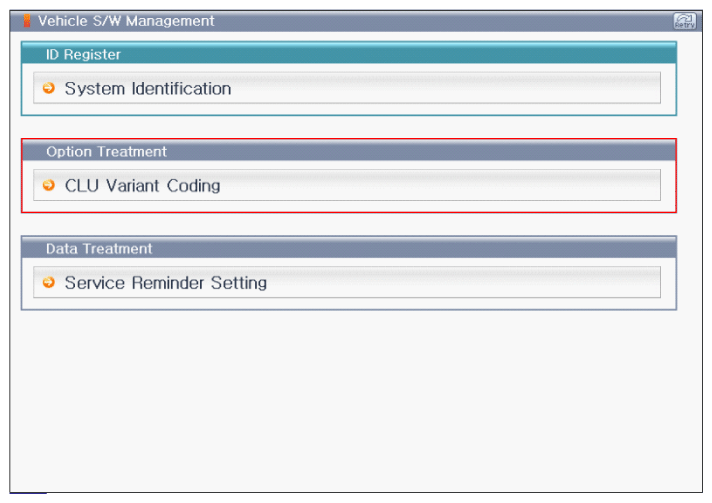

Fig 2: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

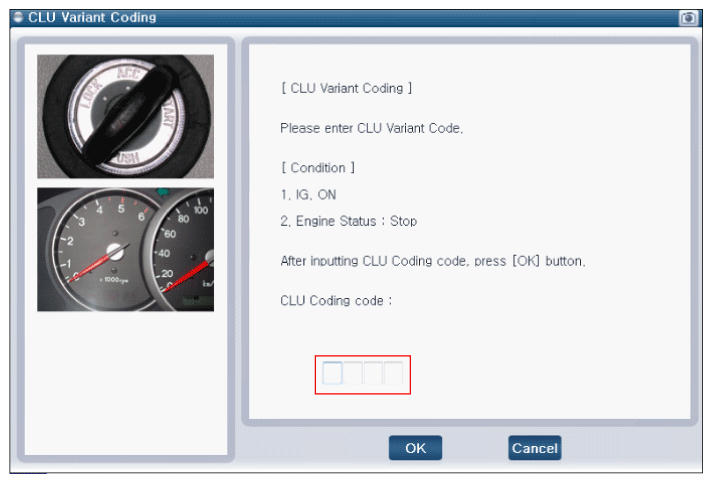

Fig 4: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line; 1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line; 2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Is the DTCs stored in the system as a present?
YES
- Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS/GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
