Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the trunk lid trim.
(Refer to Body - "TRUNK LID TRIM ")

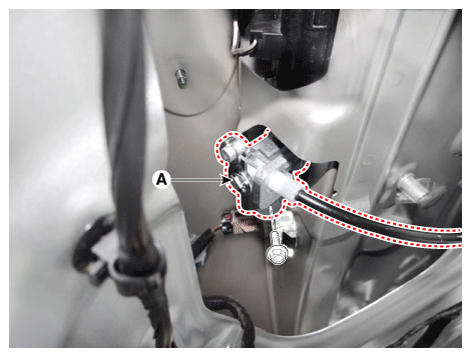

Remove the trunk key set (A) after loosening the bolt.

Fig 1: Locating Trunk Key Set With Bolt
Courtesy of KIA MOTORS AMERICA, INC.

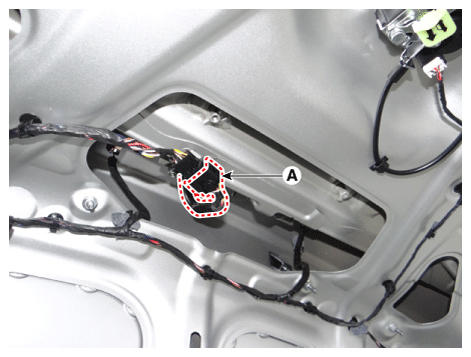

Disconnect the back view camera connector (A).

Fig 2: Locating Back View Camera Connector
Courtesy of KIA MOTORS AMERICA, INC.

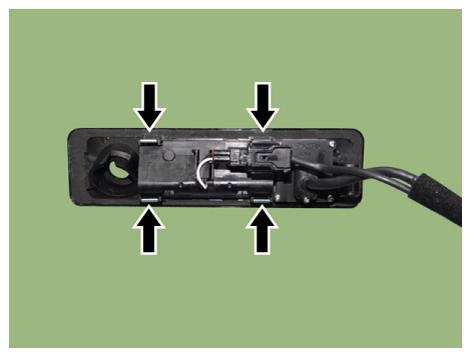

Remove the back view camera assembly (A) after pressing the locking pin.

Fig 3: Pressing Locking Pin
Courtesy of KIA MOTORS AMERICA, INC.

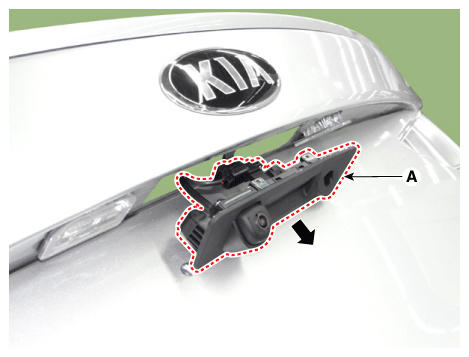

Fig 4: Removing Back View Camera Assembly
Courtesy of KIA MOTORS AMERICA, INC.
