Section 3 (Advanced Smart Cruise Control System (PHEV))
>>
Advanced Smart Cruise Control (ASCC) Switch
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

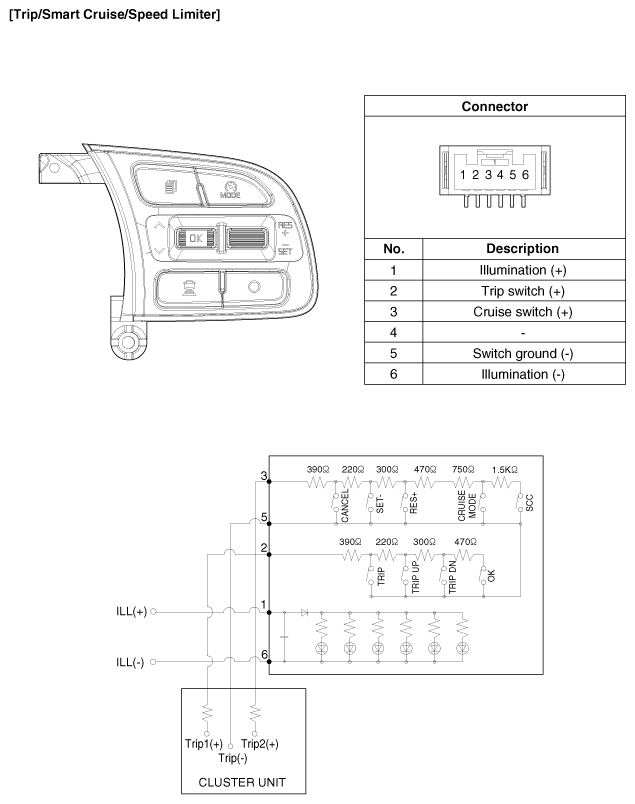

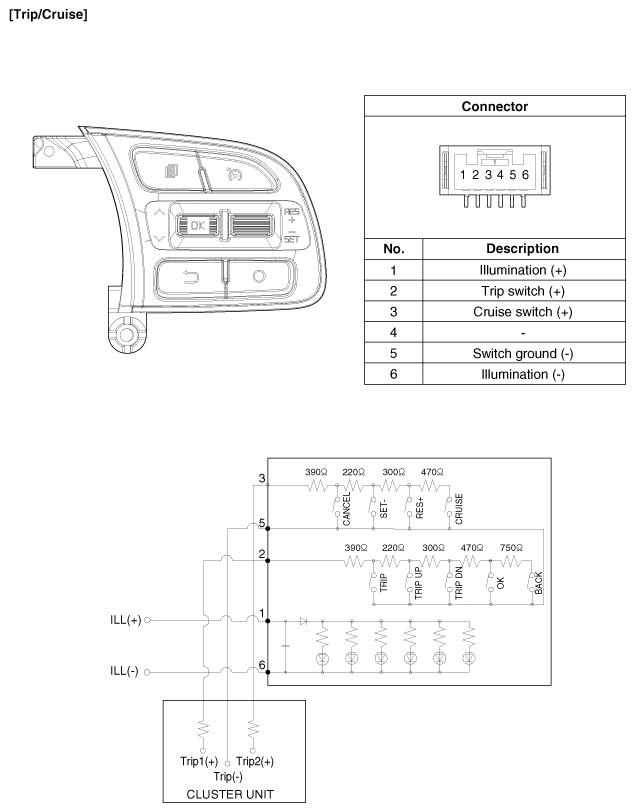

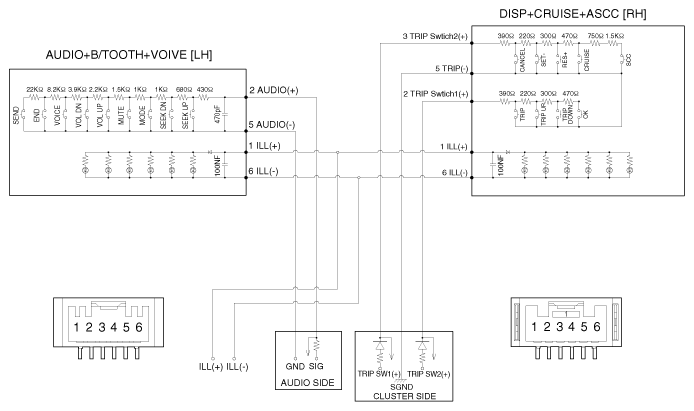

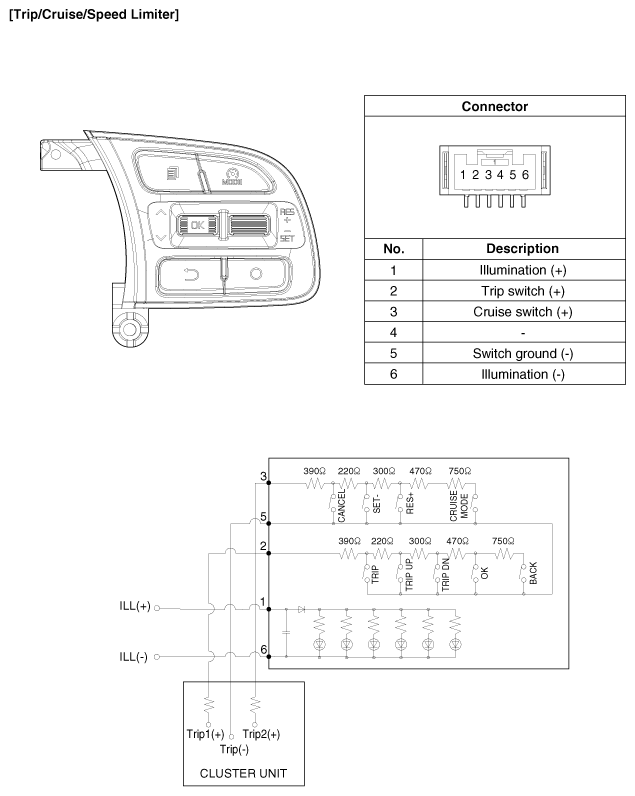

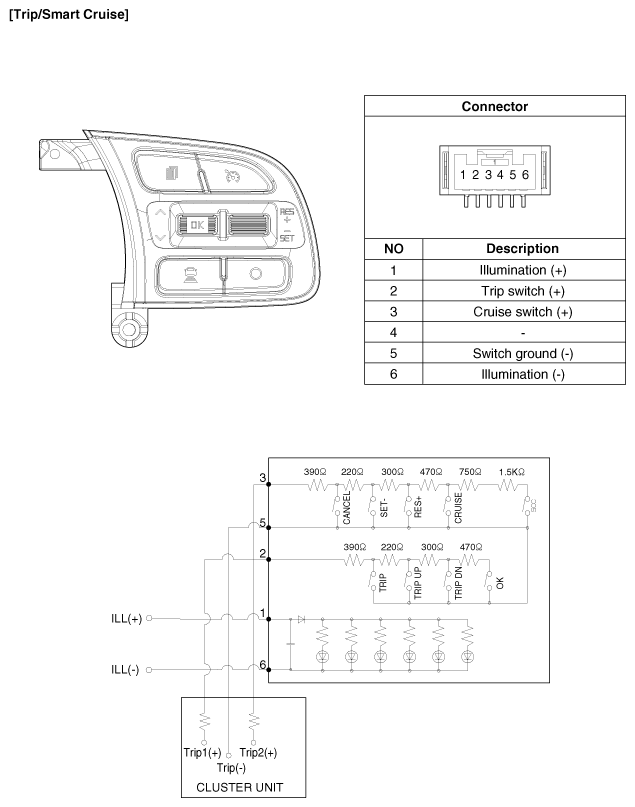

Circuit Diagram
WARNING:
This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
