Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

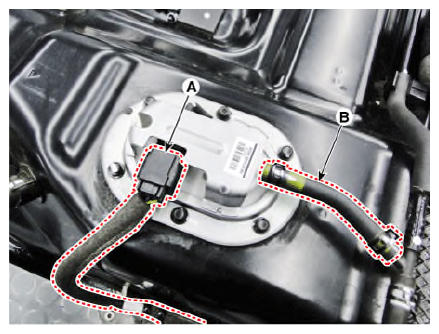

  3. Disconnect the fuel tank pressure sensor connector (A).
  4. Disconnect the vapor hose (B).
    G13077642Courtesy of KIA MOTORS AMERICA, INC.

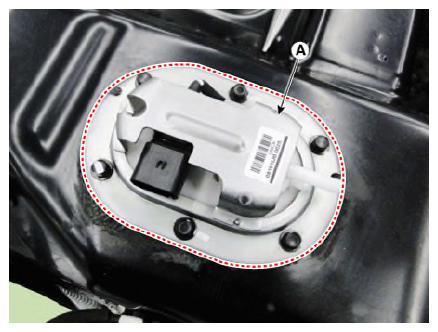

  5. Remove the 2 way cup valve plate (A) after removing the bolts.
    G13077643Courtesy of KIA MOTORS AMERICA, INC.
  6. Release the hooks and then remove the fuel tank pressure sensor from the fuel pump.
