Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

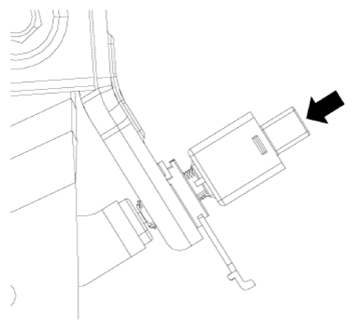

Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

Courtesy of KIA MOTORS AMERICA, INC.

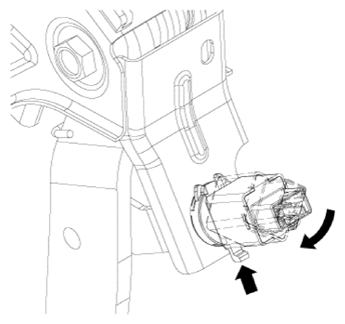

After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate (B) by pushing.

Courtesy of KIA MOTORS AMERICA, INC.
Confirm the gap between stop lamp switch and bracket.
Stop lamp clearance: 1.0 - 2.0 mm (0.04 - 0.08 in.)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04~0.08in), perform the above process again.
Connect the stop lamp switch connector.
Install the knee air bag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")
Install the lower crash pad.
(Refer to Body - "CRASH PAD ")
