Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
  2. Remove the front bumper.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ")

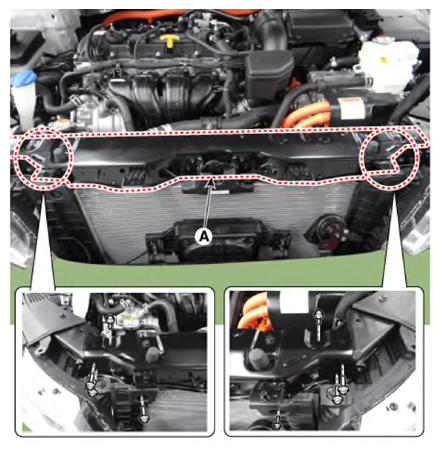

  3. Separate the radiator support upper member (A) after loosening the bolts.
    G13156748Courtesy of KIA MOTORS AMERICA, INC.

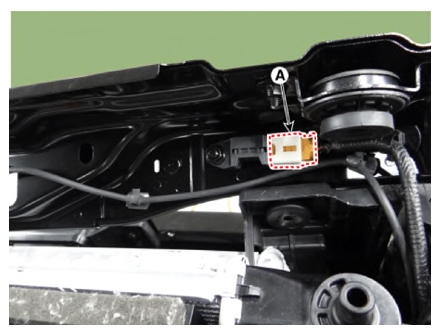

  4. Disconnect the front impact sensor connector (A).
    G13156749Courtesy of KIA MOTORS AMERICA, INC.

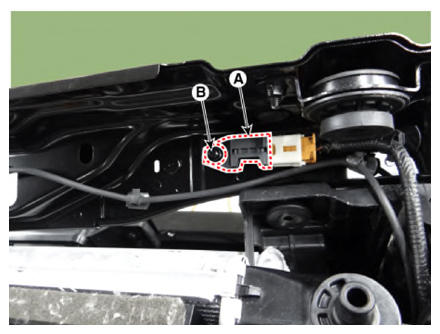

  5. Loosen the Front impact sensor mounting nut (B), and remove the sensor (A).
    G13156750Courtesy of KIA MOTORS AMERICA, INC.
