Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

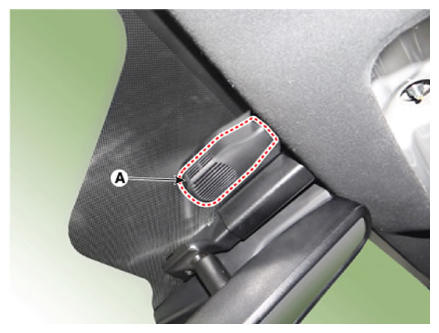

  2. Remove the auto defogging sensor cover (A).
    G13158776Courtesy of KIA MOTORS AMERICA, INC.

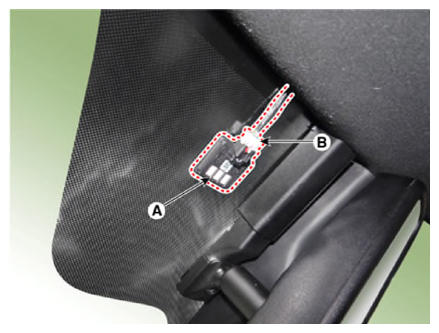

  3. Remove the auto defogging sensor (A) after disconnecting the auto defogging sensor connector (B).
    G13158777Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
