Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

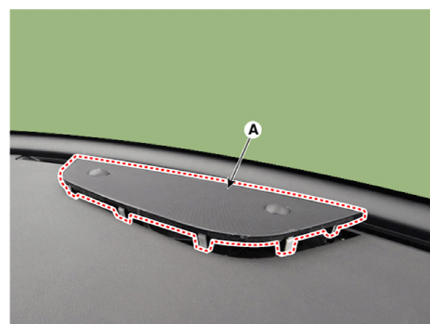

  2. Using a screwdriver or remover, remove the center speaker grille (A).
    G13158768Courtesy of KIA MOTORS AMERICA, INC.

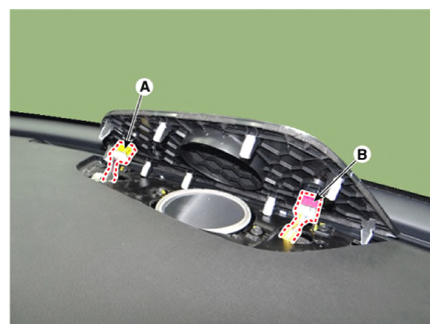

  3. Disconnect the security indicator connector (A) and photo sensor connector (B).
    G13158769Courtesy of KIA MOTORS AMERICA, INC.

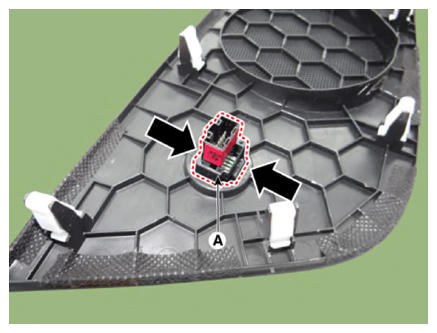

  4. Remove the photo sensor (A) by pushing the pin in the direction of the arrow.
    G13158770Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
