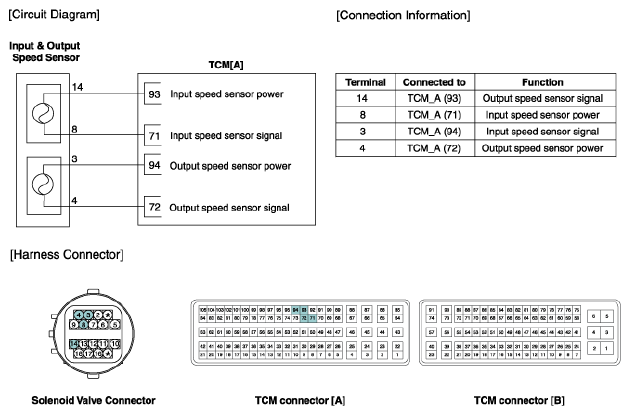

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
G13077847Courtesy of KIA MOTORS AMERICA, INC.
