Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

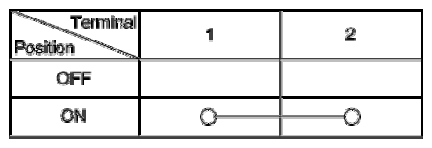

- Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.
 Courtesy of KIA MOTORS AMERICA, INC.
|

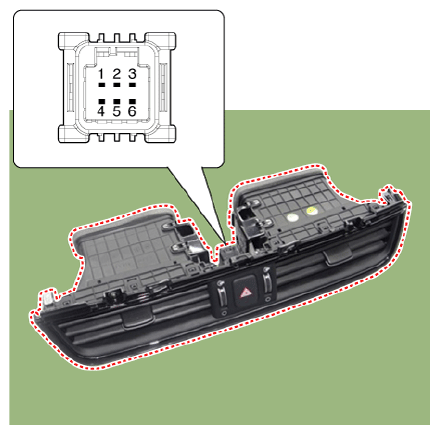

| No. |
Description |
| 1 |
Signal |
| 2 |
GND |
| 3 |
- |
| 4 |
ILL (+) |
| 5 |
- |
| 6 |
ILL (-) |
 Courtesy of KIA MOTORS AMERICA, INC.
|
