Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

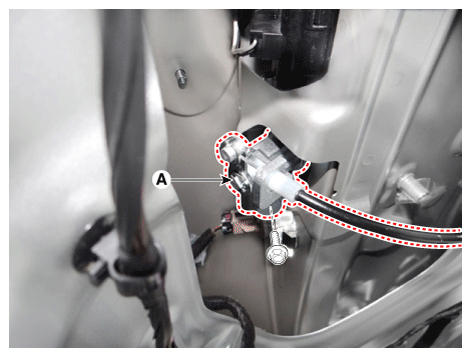

  3. Remove the trunk key set (A) after loosening the bolt.
    G12351250Courtesy of KIA MOTORS AMERICA, INC.

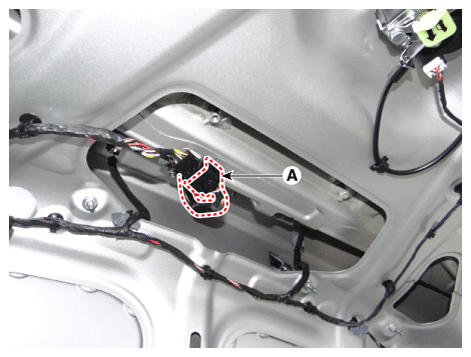

  4. Disconnect the back view camera connector (A).
    G12351251Courtesy of KIA MOTORS AMERICA, INC.

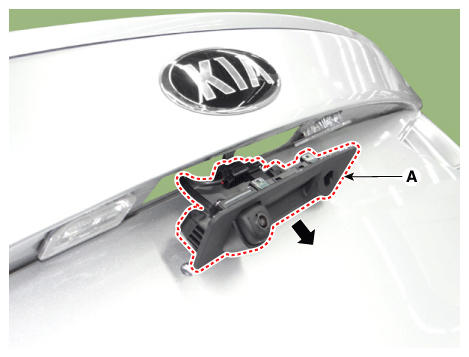

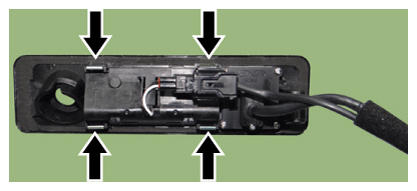

  5. Remove the back view camera assembly (A) after pressing the locking pin.
G12351252Courtesy of KIA MOTORS AMERICA, INC.
G12351253Courtesy of KIA MOTORS AMERICA, INC.
