Monitor KDS Data
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON" and Engine "ON".
- Monitor "Hand Position Driving", "Country Code" and "Vehicle transmission type" in "Current Data" with KDS.

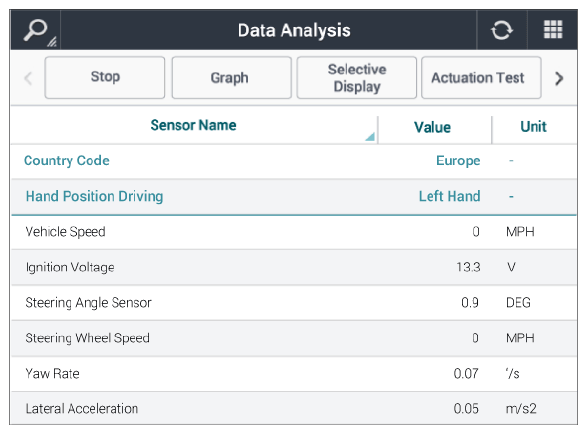

Specification: Refer to figure below
- Is the parameter displayed within specification?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
