Section 76 (Hybrid Motor Control System (HEV))
>>
Resolver Sensor
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

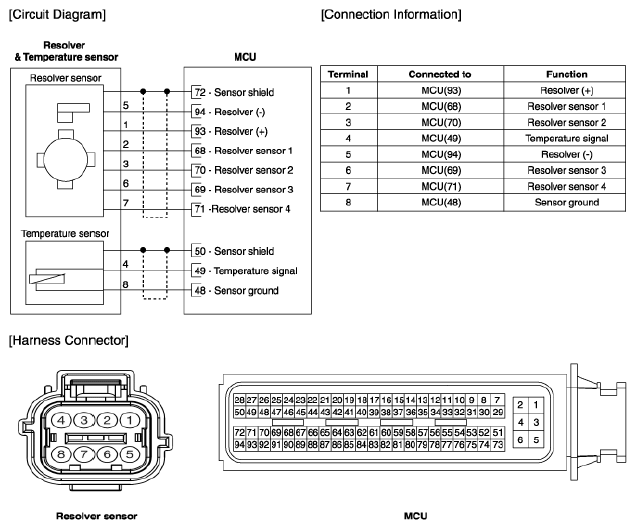

Resolver sensor (Hybrid Drive Motor)
Courtesy of KIA MOTORS AMERICA, INC.

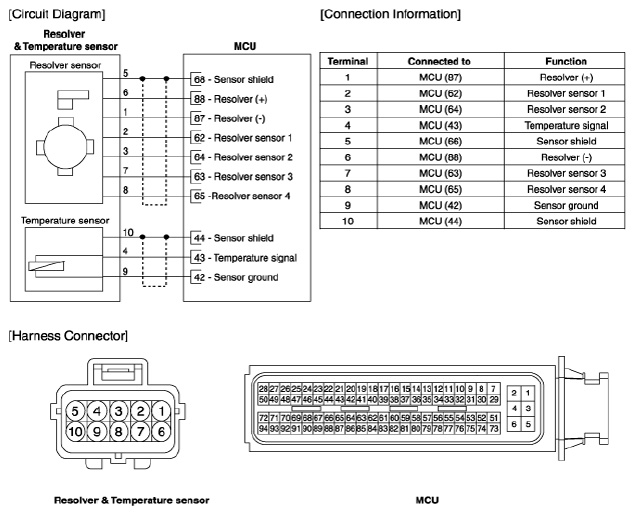

Resolver sensor (HSG)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
