Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative(-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - " CRASH PAD LOWER PANEL  ")

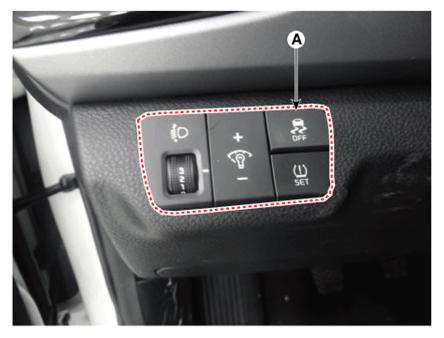

  3. Disconnect the ESC switch connector (A).
    G12578830Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
