Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

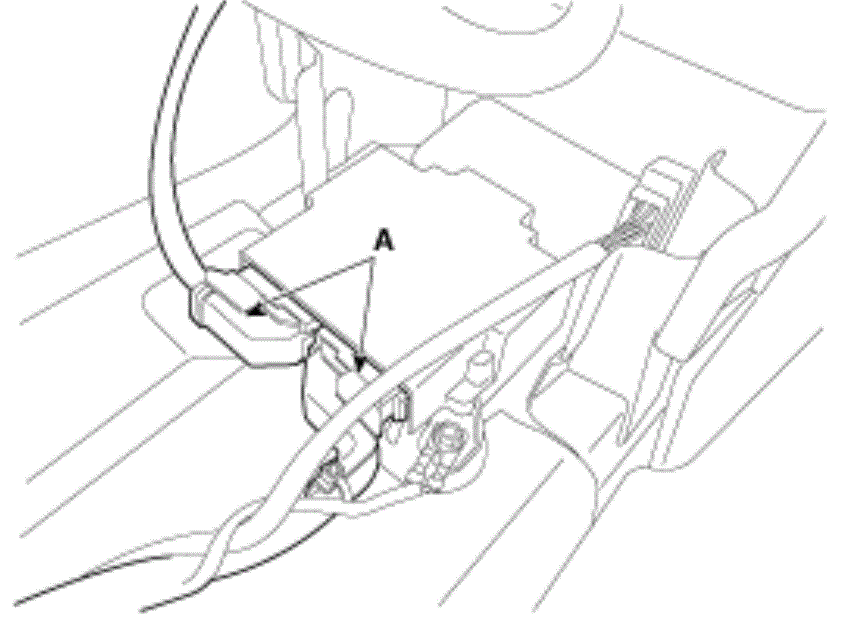

  4. Pull up the lock of the SRSCM connector, and then disconnect the connector (A).
    G13045039Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the SRSCM mounting bolts (3EA) from the SRSCM, and then remove the SRSCM.
CAUTION: You must remove or install SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
